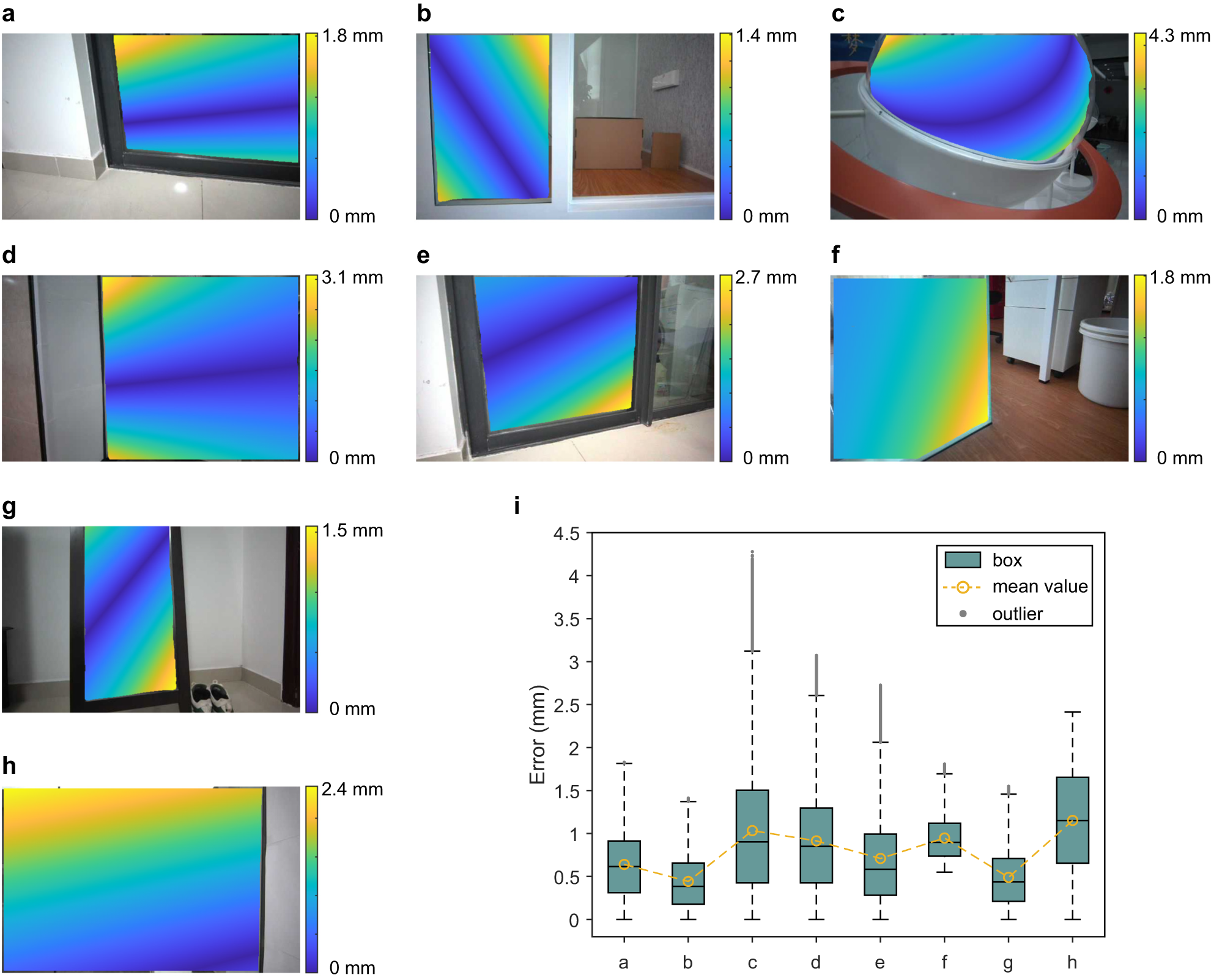

Fig. 7: Error analysis.
From: Polarization structured light 3D depth image sensor for scenes with reflective surfaces
(a)–(h) are the error maps of eight scenes of reflective surfaces, which are the absolute errors between the completed reflective surface and the fitted benchmark. i The boxplot graph of these eight error maps. It includes the box, mean value and outliers of each map, showing their statistical properties.
