Fig. 4: DEMS signals for 34O2 and 36O2 in the reaction products formed by cycling in an H218O aqueous KOH electrolyte. | Nature Communications

Fig. 4: DEMS signals for 34O2 and 36O2 in the reaction products formed by cycling in an H218O aqueous KOH electrolyte.

From: Accelerated deprotonation with a hydroxy-silicon alkali solid for rechargeable zinc-air batteries

Fig. 4

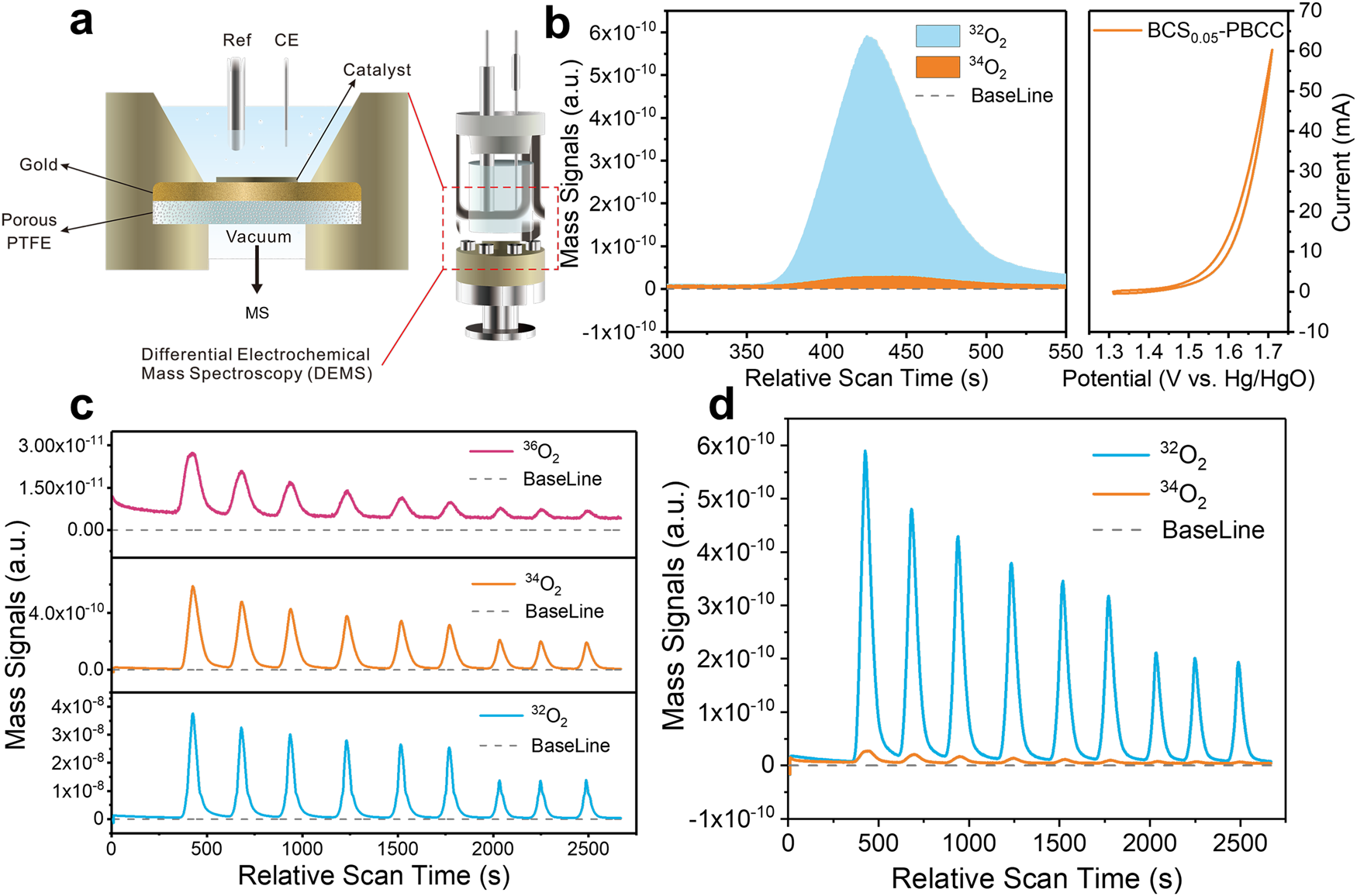

a Electrochemical flow cells for the differential electrochemical mass spectrometry (DEMS) setup and the DEMS dual thin-layer electrolyte flow cell (MS: mass spectrometry). b DEMS signals for 32O2 (16O16O) and 34O2 (16O18O) from the reaction products for the 18O-labeled BCS-PBCC catalyst in H216O aqueous KOH electrolyte and the corresponding CV cycles. The mass spectrometry signals were baseline-subtracted. c, d Plots of the DEMS signals versus time for 32O2 (16O16O), 34O2 (16O18O), and 36O2 (18O18O) in the reaction products.
