Fig. 5: miR159–RhCKX6 module governs cytokinin catabolism in petals. | Nature Communications

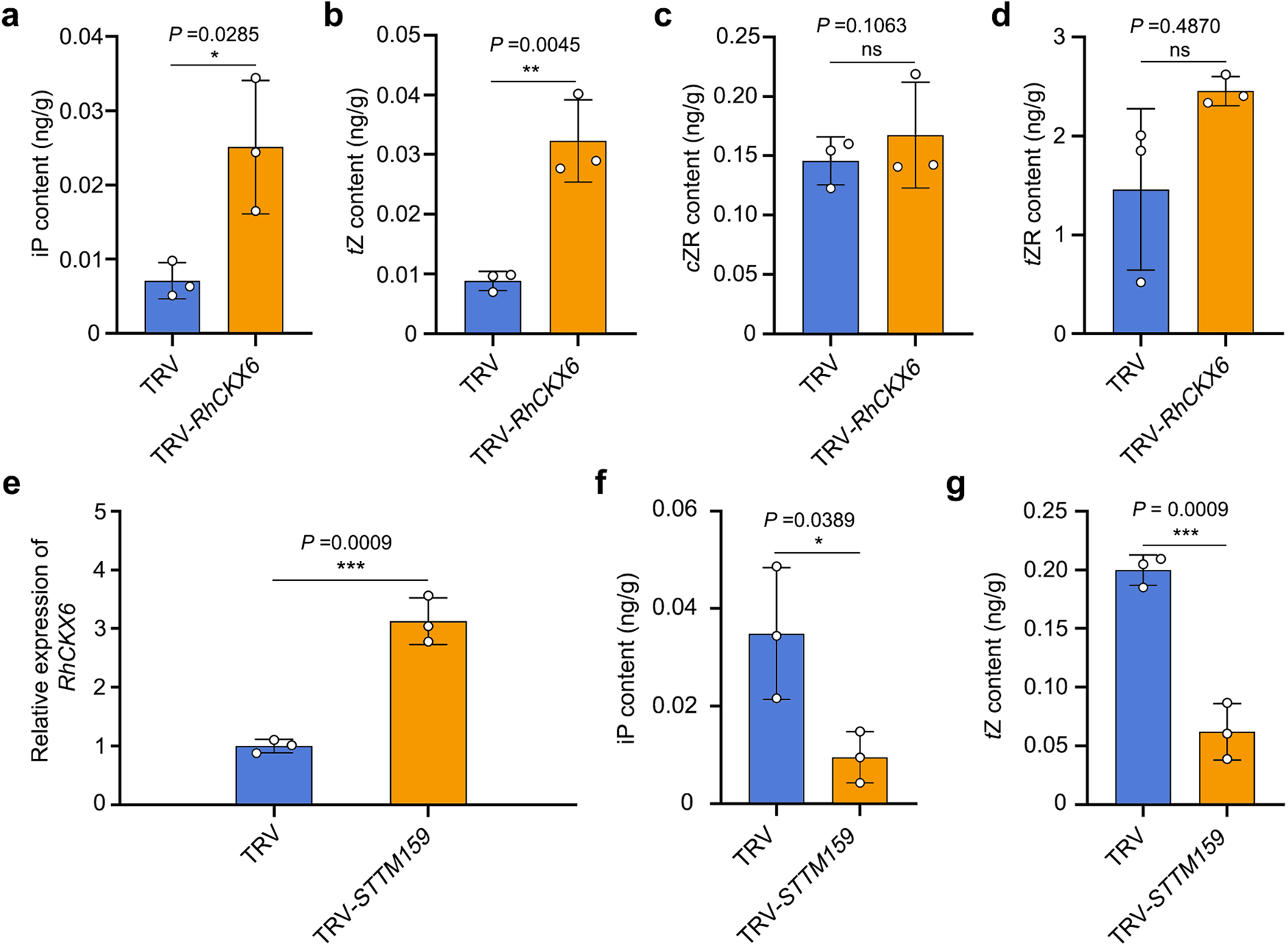

Fig. 5: miR159–RhCKX6 module governs cytokinin catabolism in petals.

From: Petal size is controlled by the MYB73/TPL/HDA19-miR159-CKX6 module regulating cytokinin catabolism in Rosa hybrida

Fig. 5: miR159–RhCKX6 module governs cytokinin catabolism in petals.The alternative text for this image may have been generated using AI.

a–d Cytokinin contents in petals of TRV and RhCKX6-silenced plants. Petals were sampled 5 days after stage 0. Data are shown as means ± SD (n = 3). e RT-qPCR analysis of RhCKX6 transcript levels in petals of TRV and TRV-STTM159 plants. RhUBI2 was used as an internal control. Data are shown as means ± SD (n = 3). f, g Cytokinin contents in petals of TRV and TRV-STTM159 plants. Petals were sampled 3 days after stage 0. Data are shown as means ± SD (n = 3). Asterisks indicate statistically significant differences (two-sided Student’s t-test; *P < 0.05; **P < 0.01; ***P < 0.001; ns no significant difference).
