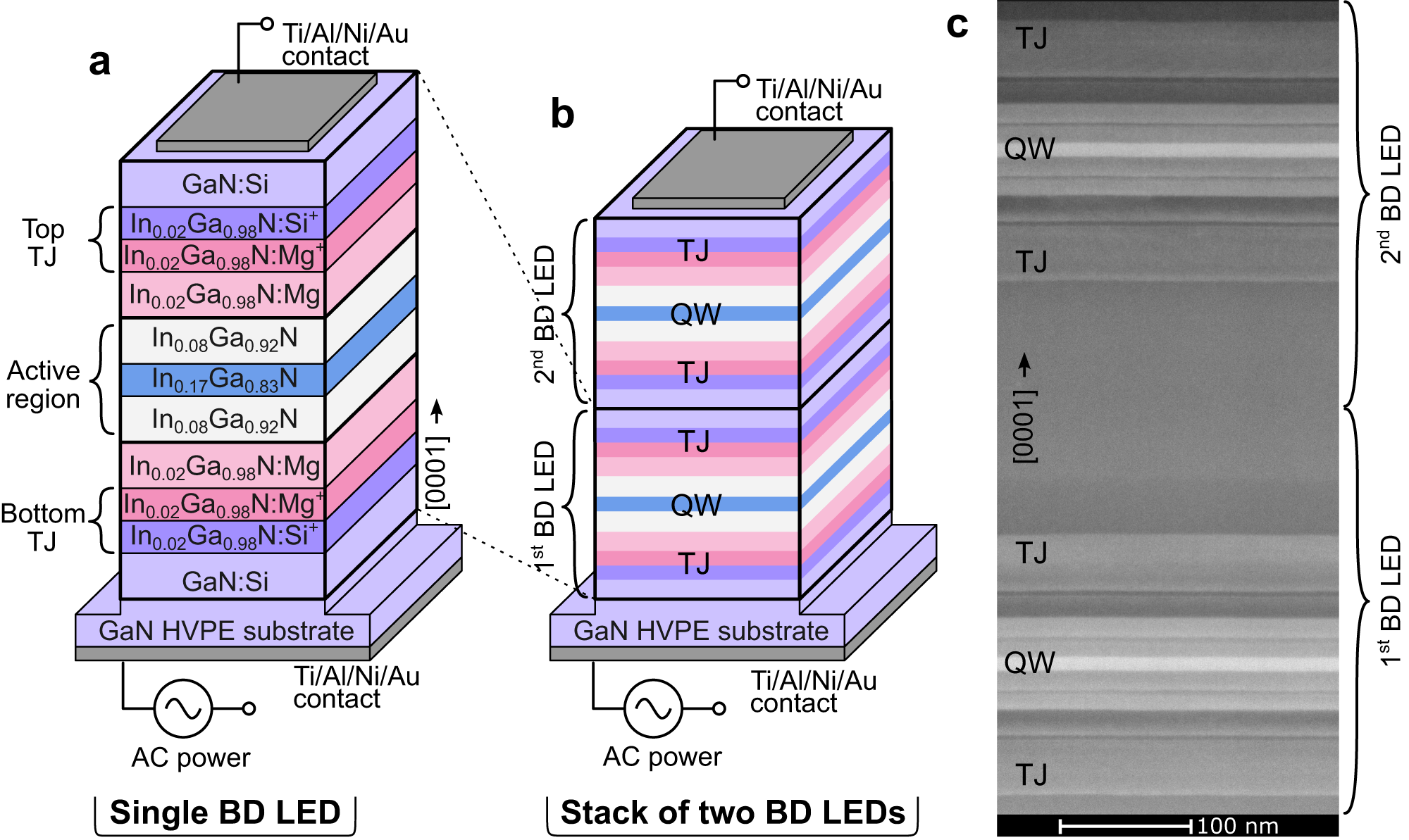

Fig. 1: The structure of bidirectional light emitting diode (BD LED).
From: Bidirectional light-emitting diode as a visible light source driven by alternating current
a Schematic structure of single BD LED and b stack of two BD LEDs. c STEM cross-section image of the stack of two BD LEDs. Visible dark horizontal lines are growth interrupts.
