Fig. 4: Factors intrinsic to hematopoietic cells contribute to the differential NKT cell subset distribution profile.

From: Intrinsic factors and CD1d1 but not CD1d2 expression levels control invariant natural killer T cell subset differentiation

Fig. 4: Factors intrinsic to hematopoietic cells contribute to the differential NKT cell subset distribution profile.The alternative text for this image may have been generated using AI.

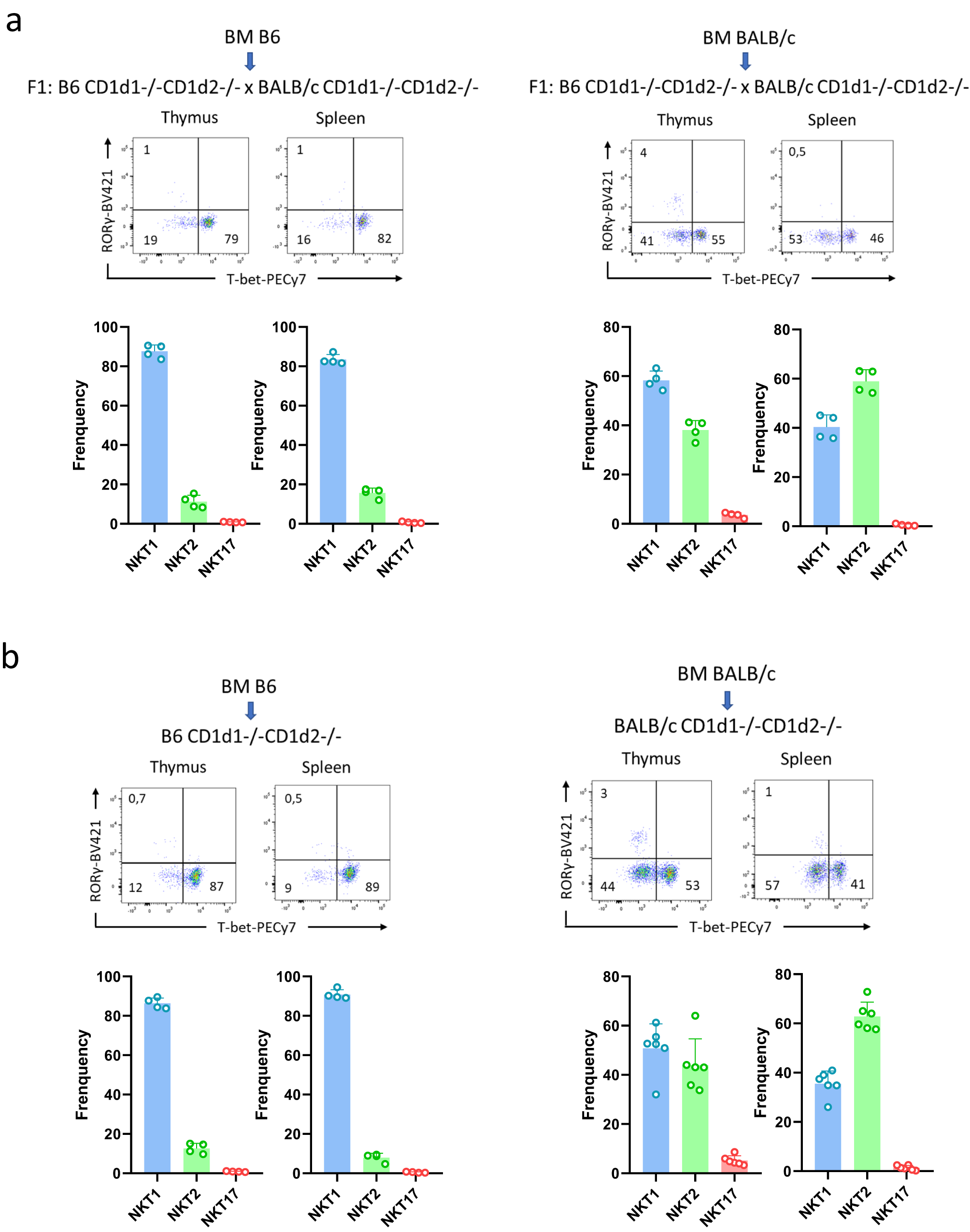

a Representative staining of NKT1 (T-bet+), NKT2 (T-bet−RORγt−), and NKT17 (RORγt+) subsets among thymic and splenic NKT cells from the indicated left (n = 4) and right (n = 4) bone marrow chimeras. Numbers on dot plots represent frequencies. Individual/mean + SEM of mean frequency for each thymic and splenic NKT cell subset are shown below. b Representative thymic and splenic staining as in a. with n = 4 and n = 6 for the indicated left and right chimeras, respectively. Data are representative of three experiments in a. and five experiments in b. with 7-8-week-old mice. Source data are provided as a Source Data file.
