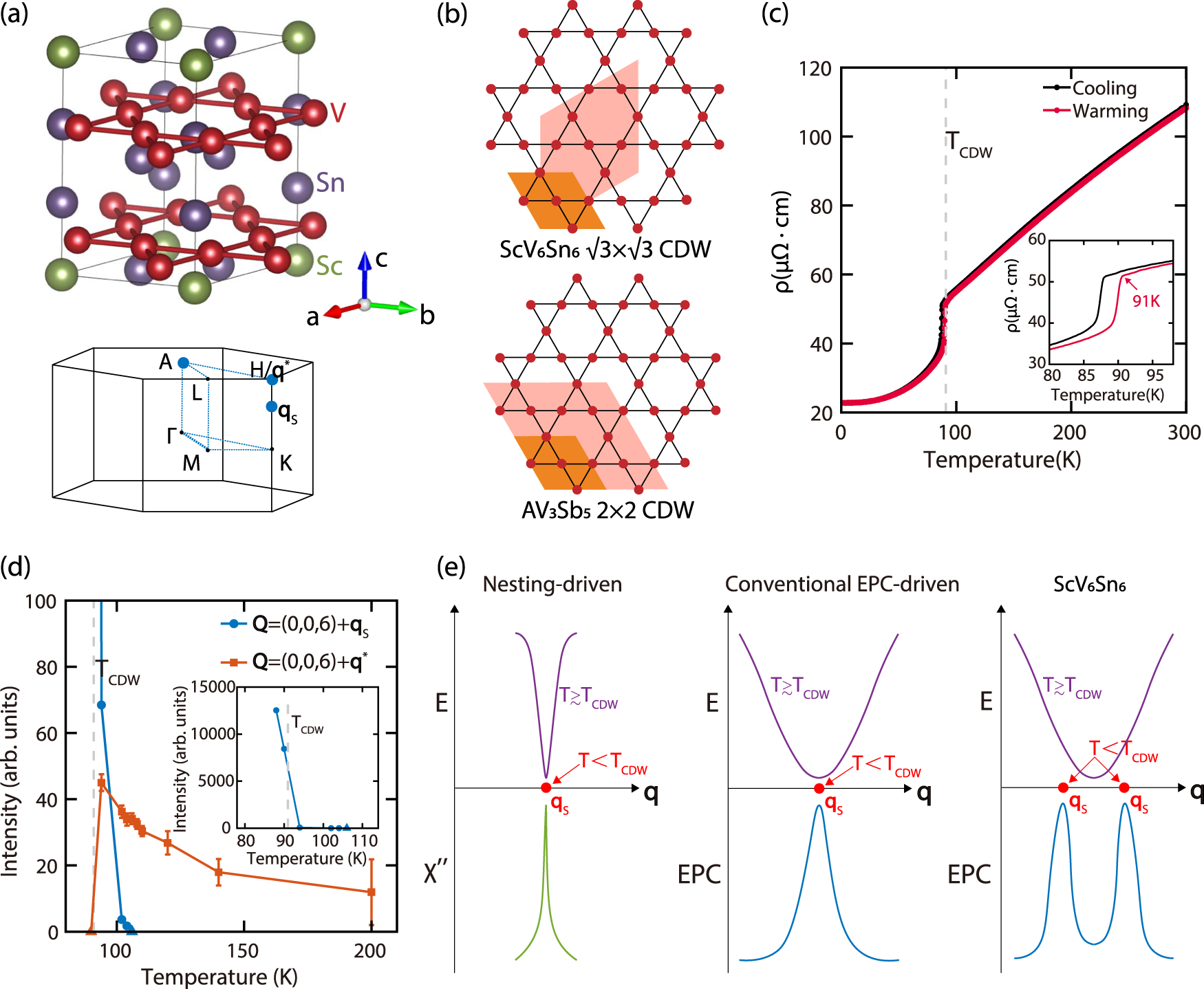

Fig. 1: Crystal structure, resistivity of ScV6Sn6, and schematics of its CDW formation.

From: Competing charge-density wave instabilities in the kagome metal ScV6Sn6

Fig. 1: Crystal structure, resistivity of ScV6Sn6, and schematics of its CDW formation.The alternative text for this image may have been generated using AI.

a Crystal structure of ScV6Sn645, visualized using VESTA70, with the Brillouin zone shown below. The blue circles are q-points probed in this work. b Expansion of the unit cell in the ab-plane for the CDWs in AV3Sb5 and ScV6Sn6. c The electrical resistivity of ScV6Sn6, the inset zooms in around TCDW. d A comparison of the integrated intensities for qs-CDW and q*-CDW, obtained from l-scans centered at (0, 0, 6). The inset zooms out to highlight the rapid growth of qs-CDW. The triangles represent the absence of a detectable peak. e Schematics of the formation process for CDWs of different origins. A nesting-driven CDW is triggered by a divergent electronic susceptibility χ, and phonon softening occurs over a small region in q-space. A conventional EPC-driven CDW results from a peak in the wavevector-dependent EPC and manifests through phonon softening over an extended region in q-space. In these two cases, the peak in χ or EPC, the softest phonon mode, and static CDW order, all occur at the same position in q-space. In ScV6Sn6, the softest phonon mode occurs at q*, whereas static CDW order and the EPC peak occur at a different wavevector qs. The error bars in (d) are least-square fit errors of 1 s.d.
