Fig. 4: Imaging of fluorescent beads through a chicken breast.

From: Overlapping speckle correlation algorithm for high-resolution imaging and tracking of objects in unknown scattering media

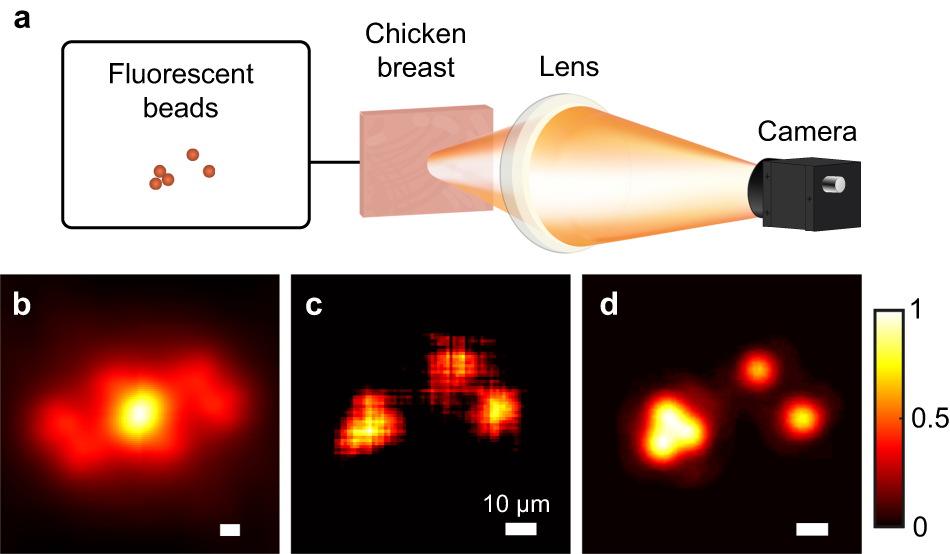

Fig. 4: Imaging of fluorescent beads through a chicken breast.The alt text for this image may have been generated using AI.

a Experimental setup. Fluorescence emitted from five 10 μm diameter beads is scattered by a chicken breast with a thickness of 700 μm, and the formed speckles are recorded via the imaging system consisting of a lens and a monochrome camera. b Constructed autocorrelation of the fluorescent beads. c Reconstructed image of the beads. d Direct imaging without chicken breast in the optical path. Scale bars: 10 μm.
