Fig. 6: Thermal management applications of PW@OBC-SEBS composites (F-FSPCMs).

From: Ultraflexible, cost-effective and scalable polymer-based phase change composites via chemical cross-linking for wearable thermal management

Fig. 6: Thermal management applications of PW@OBC-SEBS composites (F-FSPCMs).

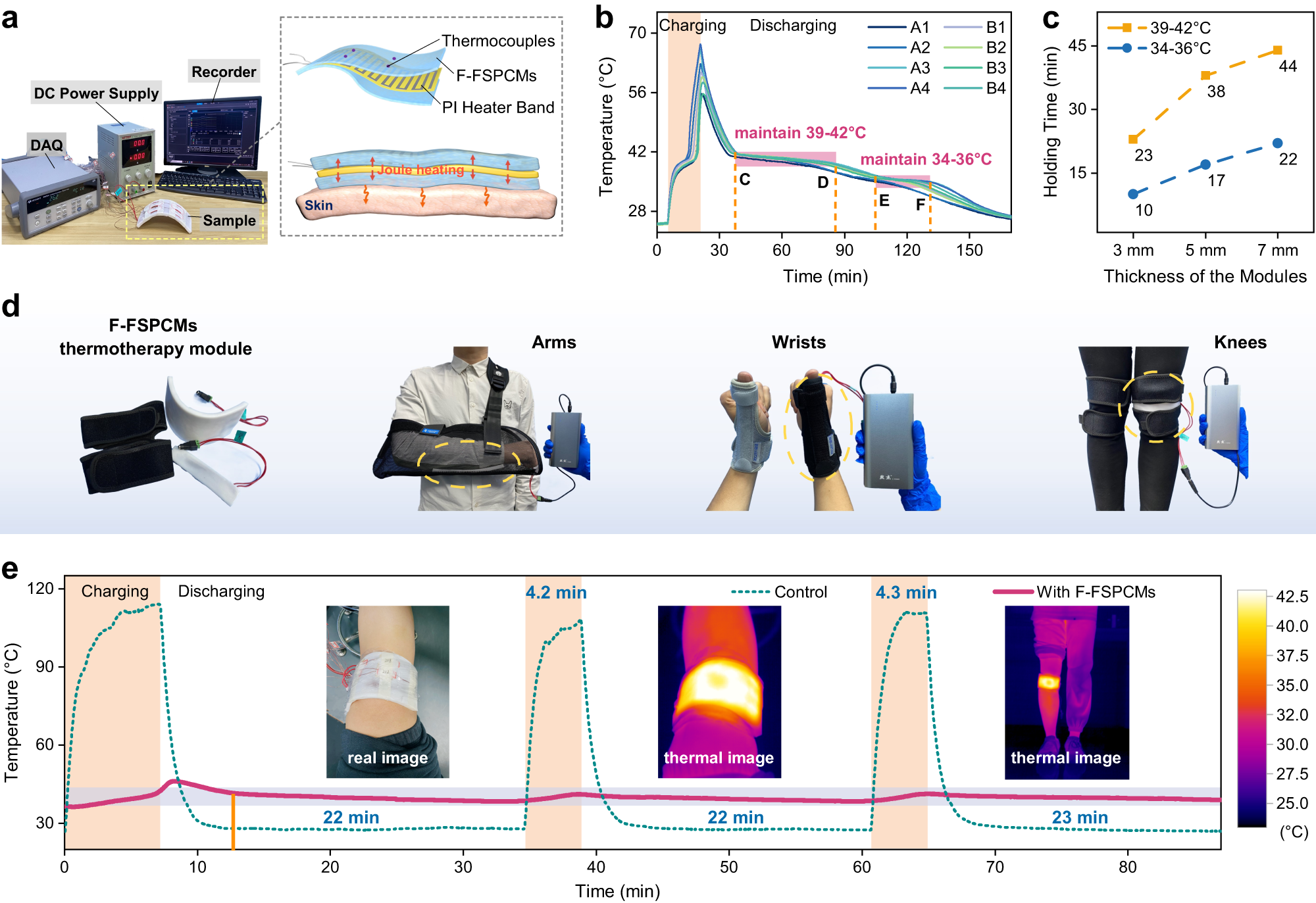

a Experimental setup for the evaluation of heat storage/release of the F-FSPCMs module. b Surface temperature of the F-FSPCMs module during a heat storage/discharge cycle (7 mm thickness). c Temperature holding time of the F-FSPCMs module with the same heat supply for 3 mm, 5 mm and 7 mm thickness. d Several types of integrated and portable F-FSPCMs modules for personal thermotherapy. e Temperature evolution of insulating device based on F-FSPCMs module (5 mm thickness) acting on a knee during charging and discharging.
