Fig. 5: Catalytic performance of catalysts prepared by different synthesis methods.

From: Enabling direct-growth route for highly efficient ethanol upgrading to long-chain alcohols in aqueous phase

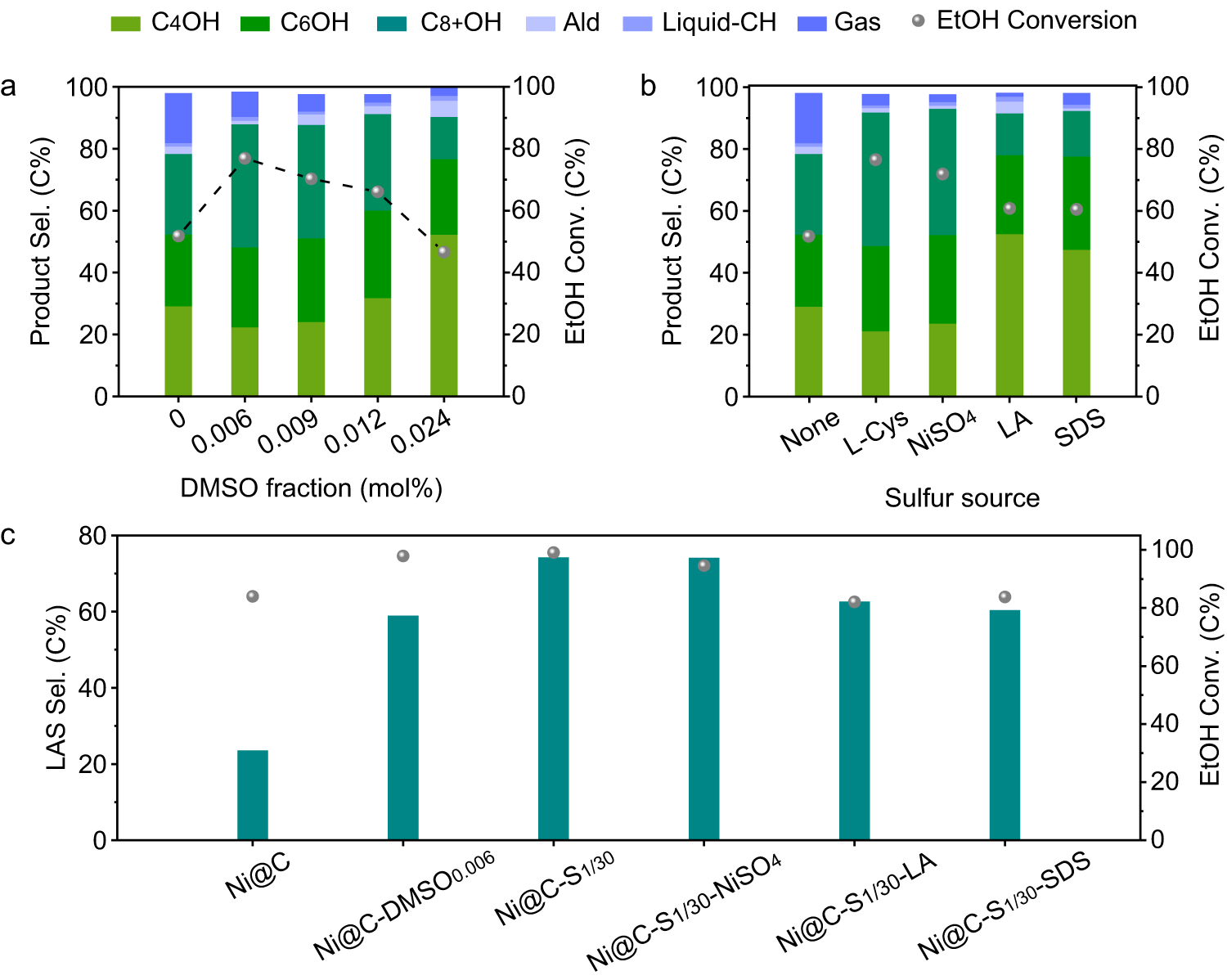

Fig. 5: Catalytic performance of catalysts prepared by different synthesis methods.

EtOH conversion and product selectivity over Ni@C-DMSOz catalysts with different DMSO fractions in aqueous EtOH (a) and Ni@C-S1/30-y catalysts using different sulfur precursors (b). Reaction conditions: 180 °C, 12 h, catalyst (0.3 g), NaOH (21.6 mmol), 50.0 wt% aqueous EtOH (108.0 mmol). The catalytic performance of typical catalysts under the optimized reaction conditions (c). Reaction conditions: 180 °C for 6 h and then heating to 250 °C for 6 h, catalyst (0.3 g), NaOH (21.6 mmol), 50.0 wt% aqueous EtOH (108.0 mmol).
