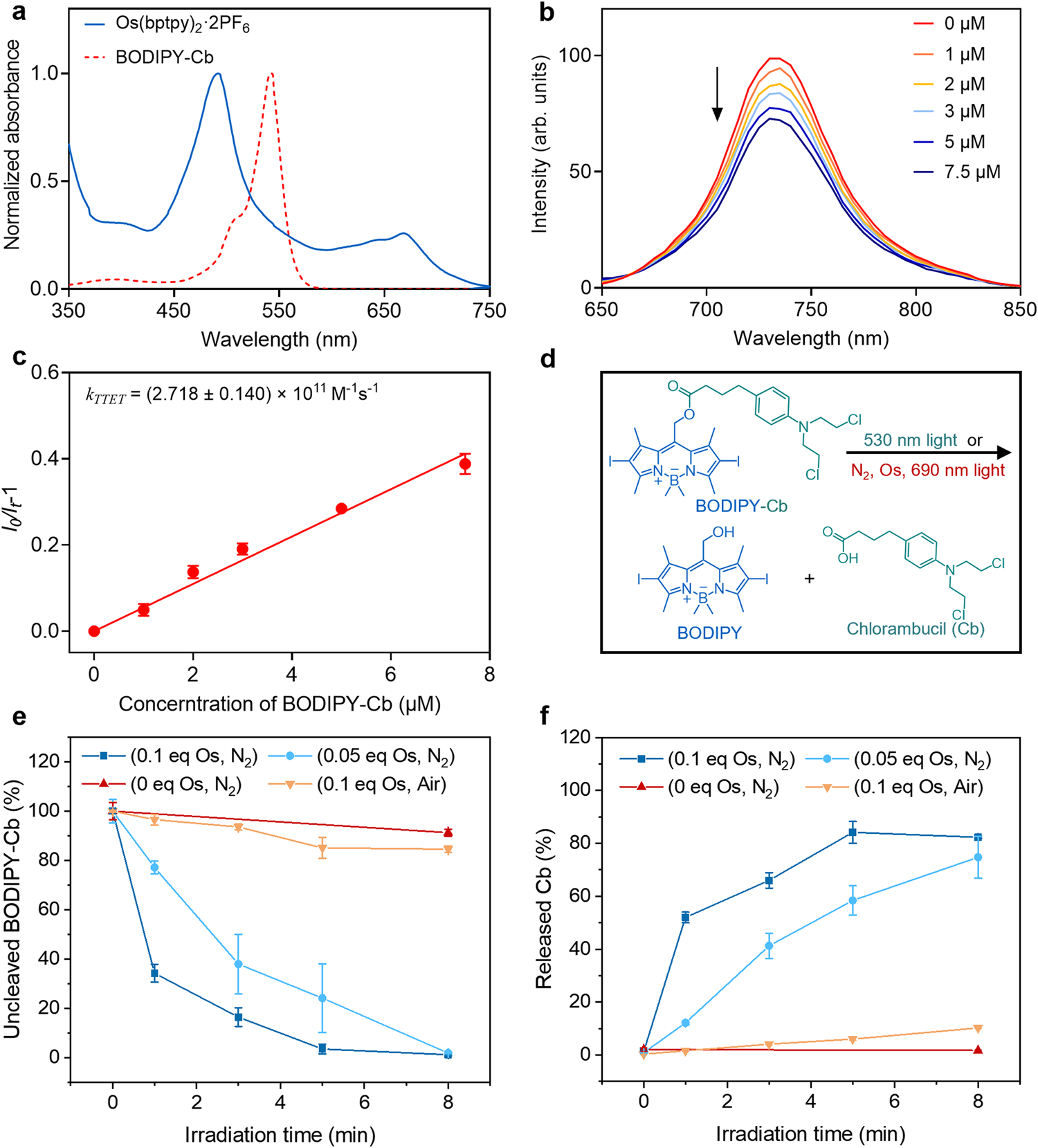

Fig. 2: Photophysical properties and photolytic reaction upon light irradiation.
From: Near-infrared light-triggered prodrug photolysis by one-step energy transfer
a Normalized absorption spectra of BODIPY-Cb and Os(bptpy)22+ in dichloromethane. b Phosphorescence quenching of Os(bptpy)22+ (10 µM) in the presence of different concentrations of BODIPY-Cb, λex = 492 nm, in N2-saturated toluene. c Stern-Volmer plot based on the phosphorescence quenching by different concentrations of BODIPY-Cb. d Photolysis reaction of BODIPY-Cb with/without Os(bptpy)22+ (denoted as Os). e Photolysis rate of BODIPY-Cb upon 690 nm light irradiation for different time durations. f Generation rate of Cb upon 690 nm light irradiation for different time durations (solution: N2-saturated methanol; BODIPY-Cb concentration: 10-3 M; light irradiance: 690 nm, 100 mW/cm2). Data in c, e, f are presented as mean ± SD, n = 3 independent experiments. Source data are provided as a Source Data file.
