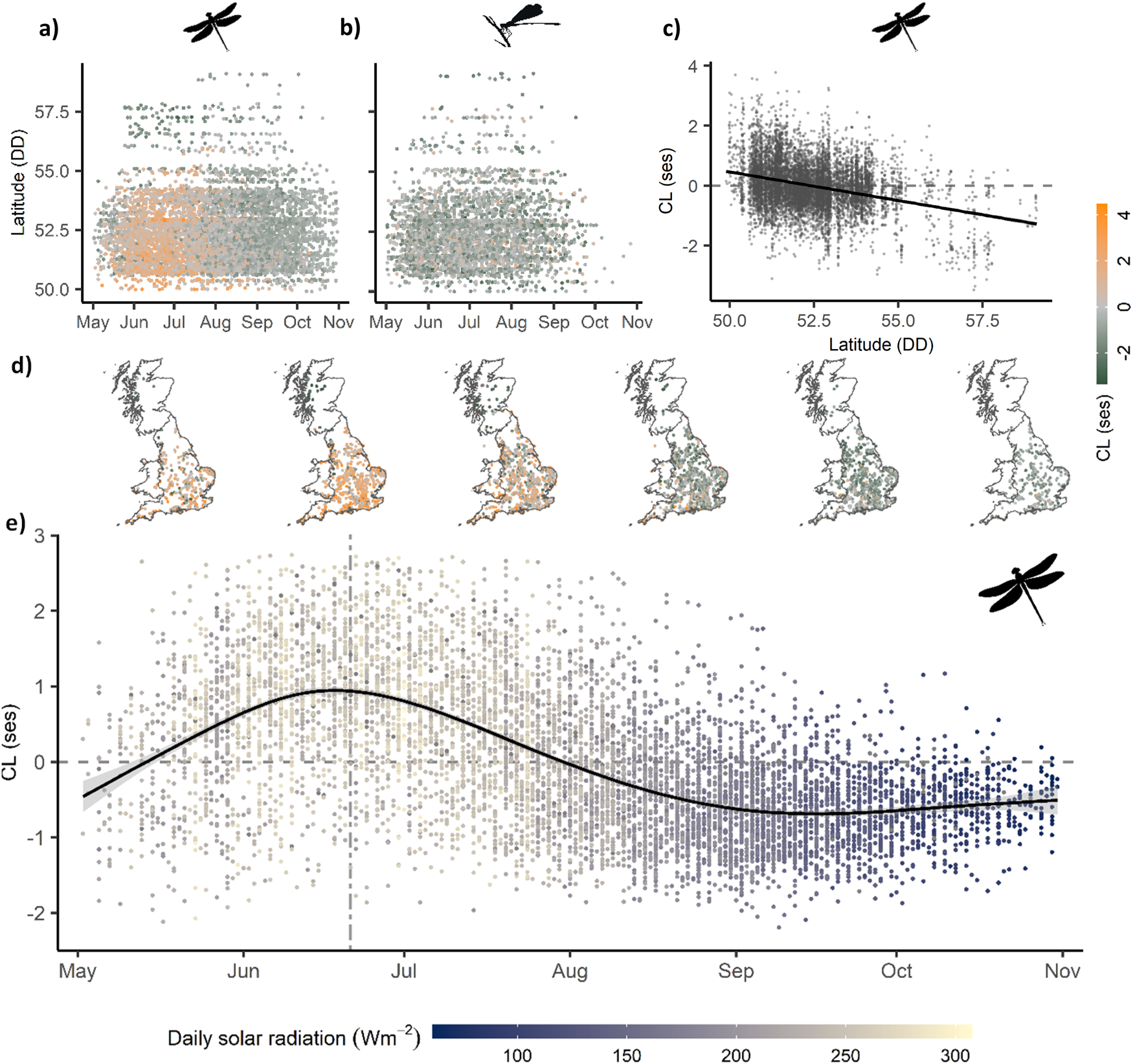

Fig. 2: Spatio-phenological variation of body colour lightness (CL) of dragonfly (a, c, d, e) and damselfly (b) assemblages in Great Britain.

From: Seasonal variation in dragonfly assemblage colouration suggests a link between thermal melanism and phenology

Fig. 2

Variation of CL of dragonfly (a) and damselfly (b) assemblages along latitude and season. c Residual CL variation of dragonfly assemblages with latitude, after removing the seasonal component. e Residual CL variation of dragonfly assemblages along the season after removing the latitudinal component. The black curve indicates LOESS regression with grey area indicating 95% confidence interval; point colour indicates solar radiation intensity received on the specific day of the year at the assemblage location; the vertical dashed line indicates summer solstice. CL is measured as community-weighted mean of body colour lightness in standard effect size units, i.e. as deviation of observed values from those of random assemblages (see “Methods”). CL values above zero (marked by the horizontal dashed line) indicate lighter assemblages than expected by chance, CL values below zero indicate darker assemblages than expected by chance.
