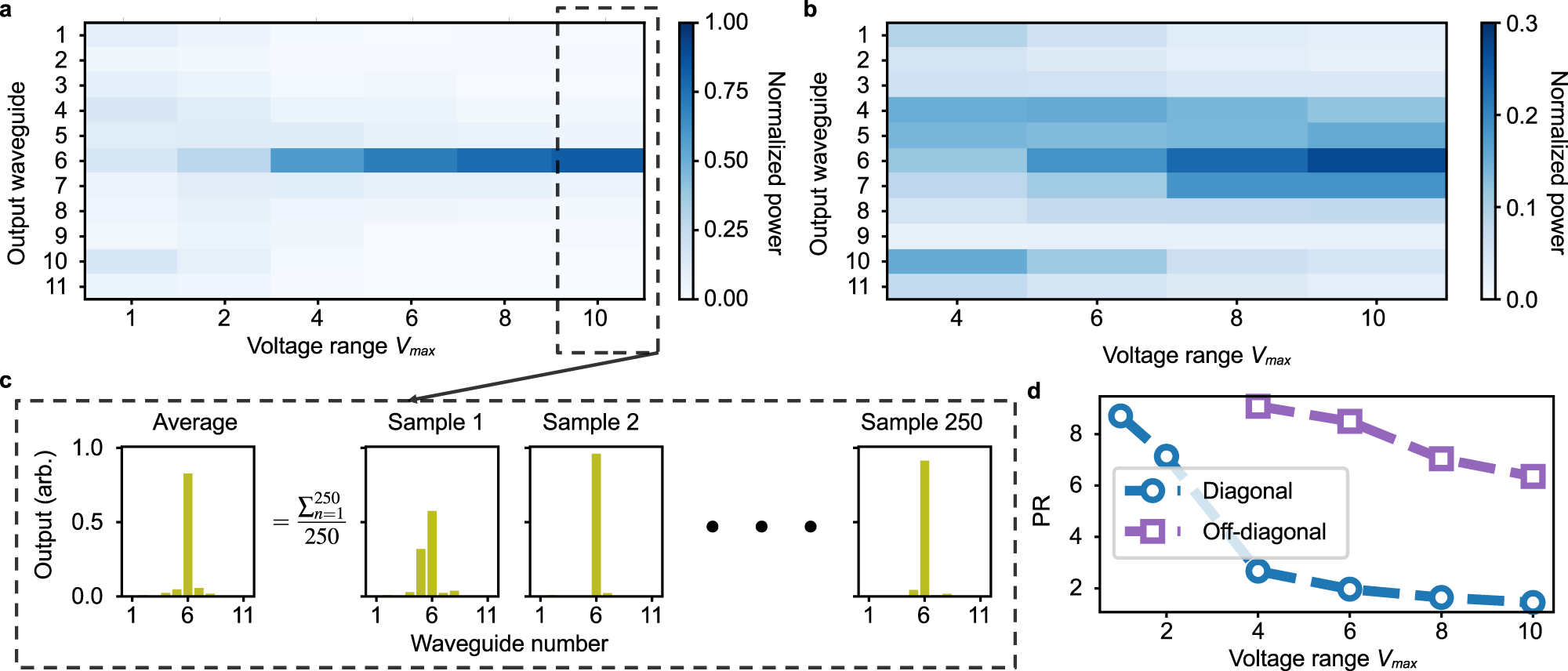

Fig. 4: Anderson localization with site and bond disorder.
From: Programmable high-dimensional Hamiltonian in a photonic waveguide array
Each vertical slice is the averaged power distribution measured at the output facet corresponding to a disorder strength indicated by the voltage range. a The disorder is applied to the propagation coefficients βn. b The disorder is applied to the propagation coefficients Cn,n+1. c Each averaged power distribution comes from 250 random Hamiltonians. d Measured PR of Anderson localization.
