Fig. 3: Genomic structure of qnrS1 mobile ARG patterns in E. coli and S. enterica isolates collected from the same samples.

From: Convergence of resistance and evolutionary responses in Escherichia coli and Salmonella enterica co-inhabiting chicken farms in China

Fig. 3: Genomic structure of qnrS1 mobile ARG patterns in E. coli and S. enterica isolates collected from the same samples.The alternative text for this image may have been generated using AI.

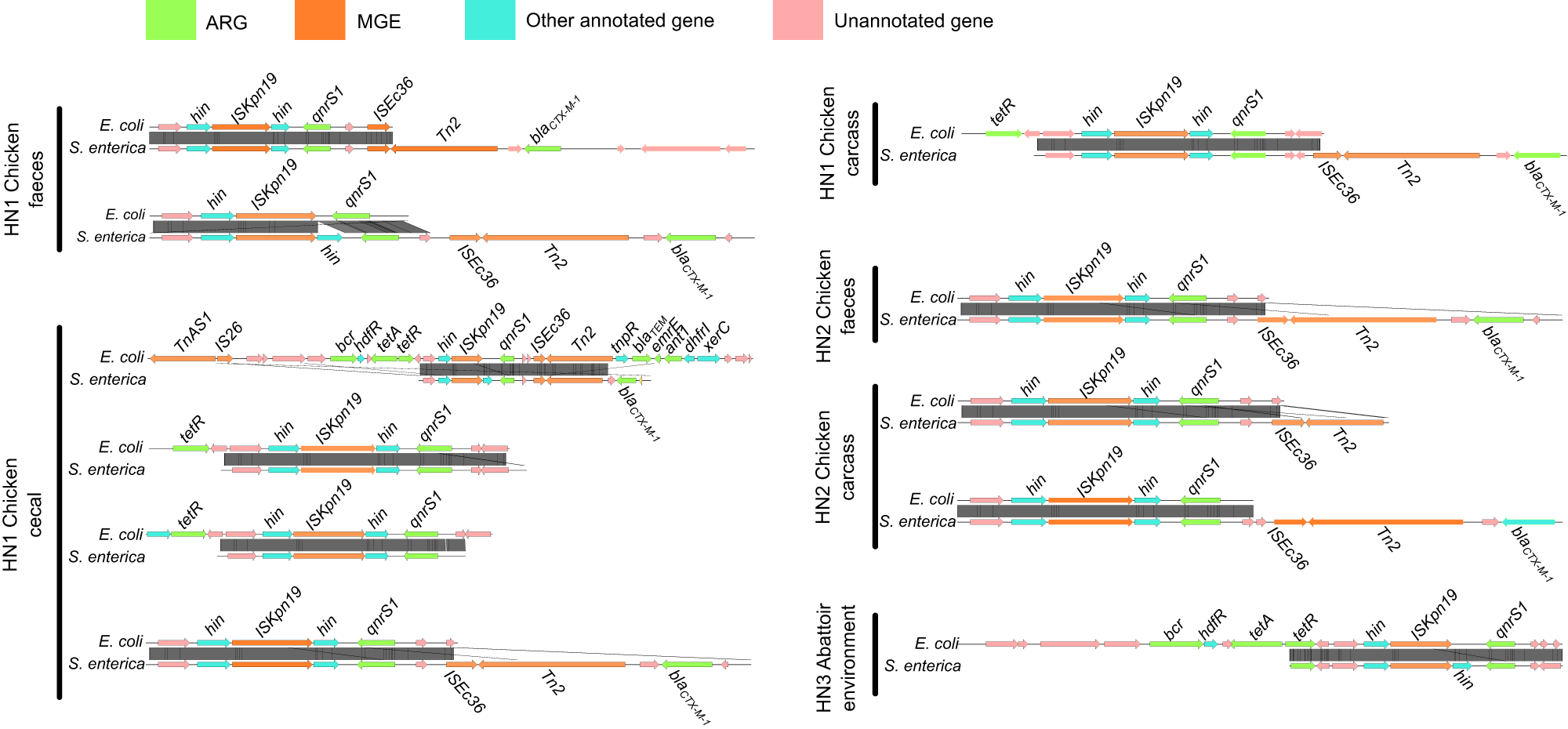

Each pair of samples was aligned by qnrS1. Coding DNA sequences are coloured according to the function of their encoded protein, as follows: ARGs were coloured in green; MGEs were coloured in orange, other annotated genes were coloured in cyan and other open reading frames (ORF) were coloured in pink.
