Fig. 5: Complementarity of the predictions made in different prediction modes.
From: From interaction networks to interfaces, scanning intrinsically disordered regions using AlphaFold2

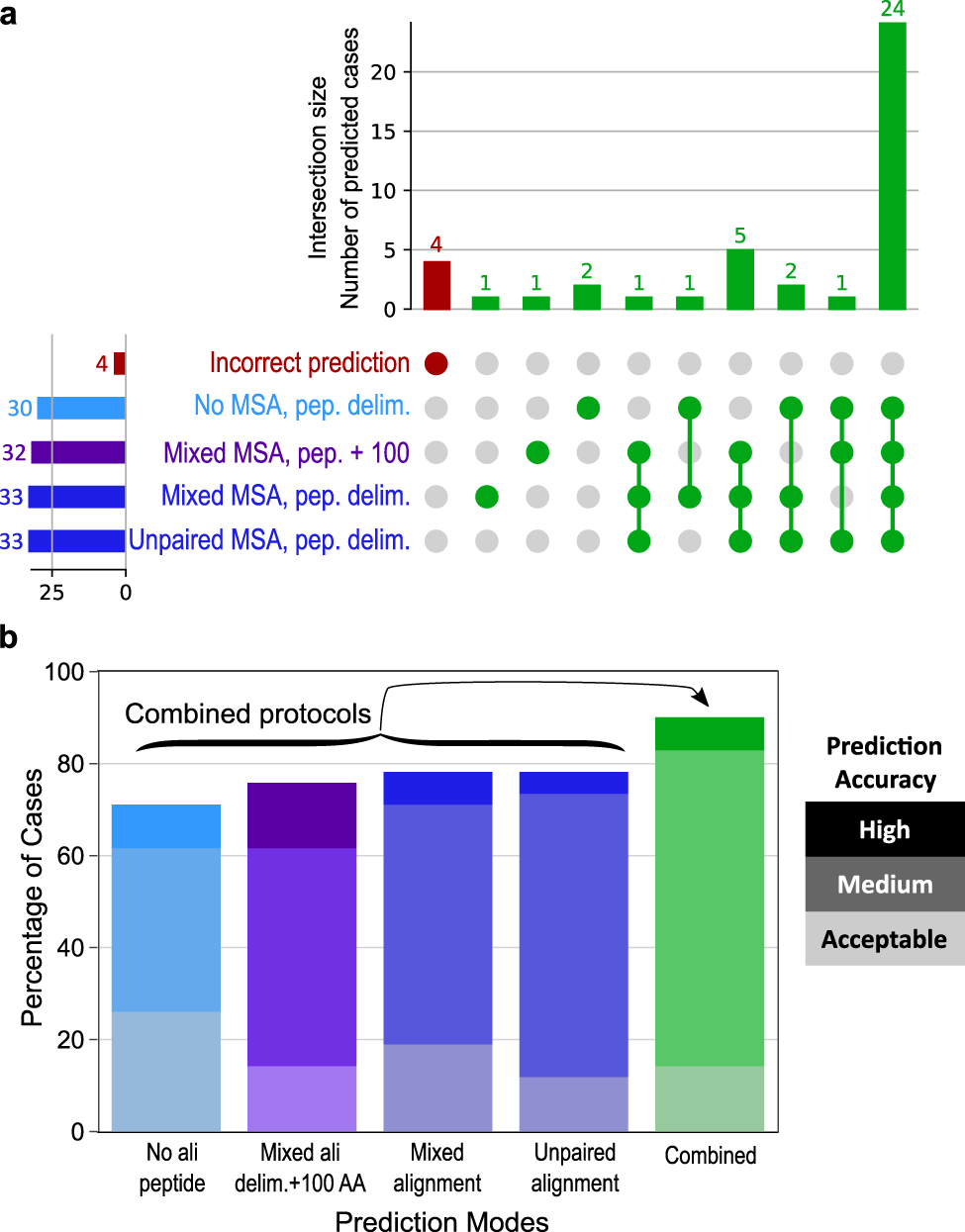

a UpSet diagram69 displaying the number of successful cases (out of 42) found by either a single or several prediction mode(s) among the following: delimited peptide with no peptide multiple sequence alignment (MSA), peptide extended by 100 residues with a mixed MSA, delimited peptide with a mixed MSA, delimited peptide with an unpaired MSA. 5 cases that can be identified in none of these conditions are highlighted in red. b Success rates for the four protocols shown in panel a (values are the same as in Fig. 2) and for a combined protocol taking the best AlphaFold2 (AF2) confidence score value out of 100 models (25 for each condition) (green grades). Source data are provided as a Source Data file.
