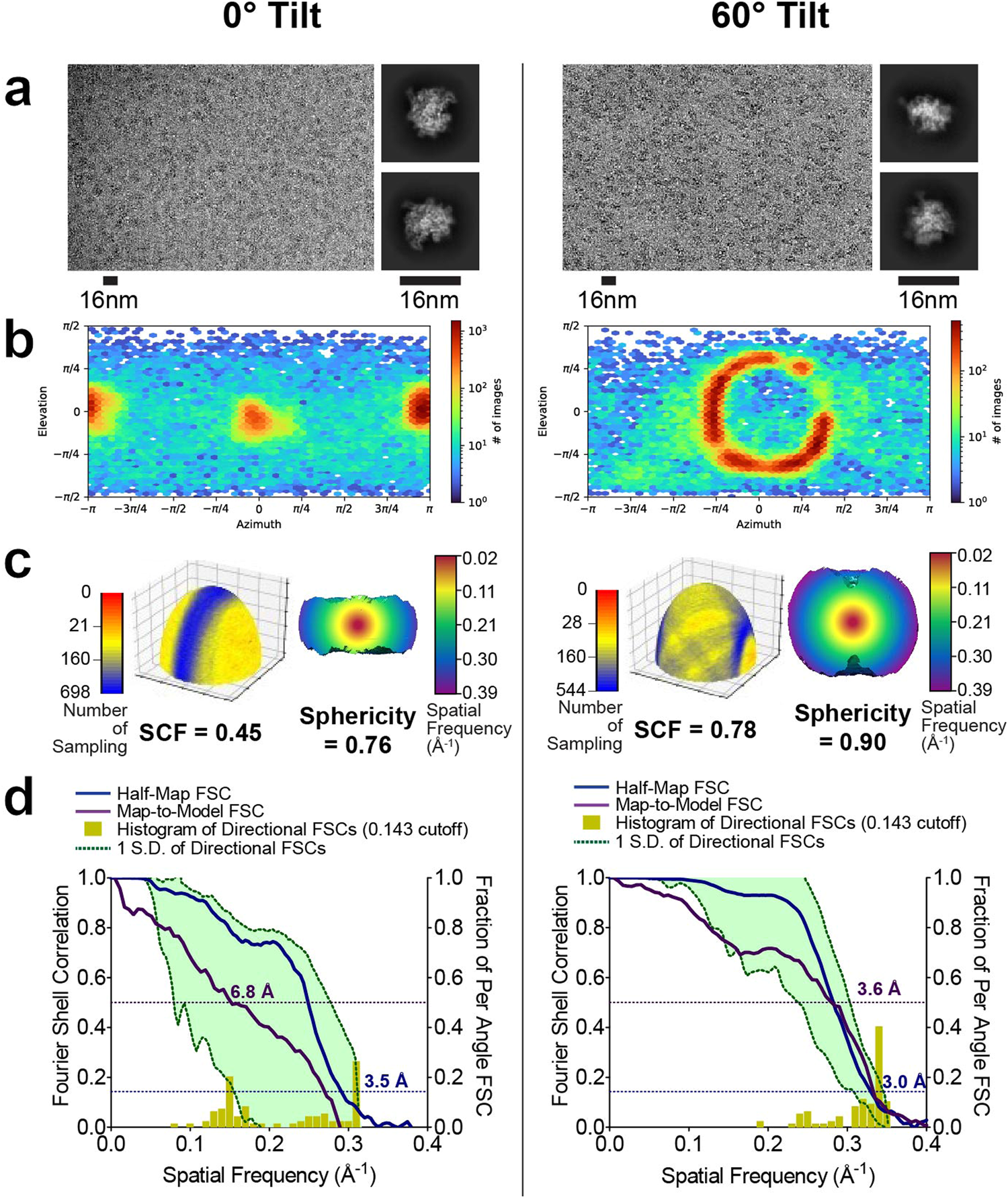

Fig. 8: Evaluation metrics for RNAP at 0° and 60° tilt angles.
From: Overcoming resolution attenuation during tilted cryo-EM data collection
RNAP data was collected without tilts and at 60° tilt angle. a Micrographs at 1.3 µm defocus, with corresponding 2D class averages at right. b Final Euler angle distributions. c Surface sampling plots with the sampling compensation factor (SCF) value below (left) and central slice through 3DFSC, colored by resolution. d Half-map and map-to-model global FSC curves.
