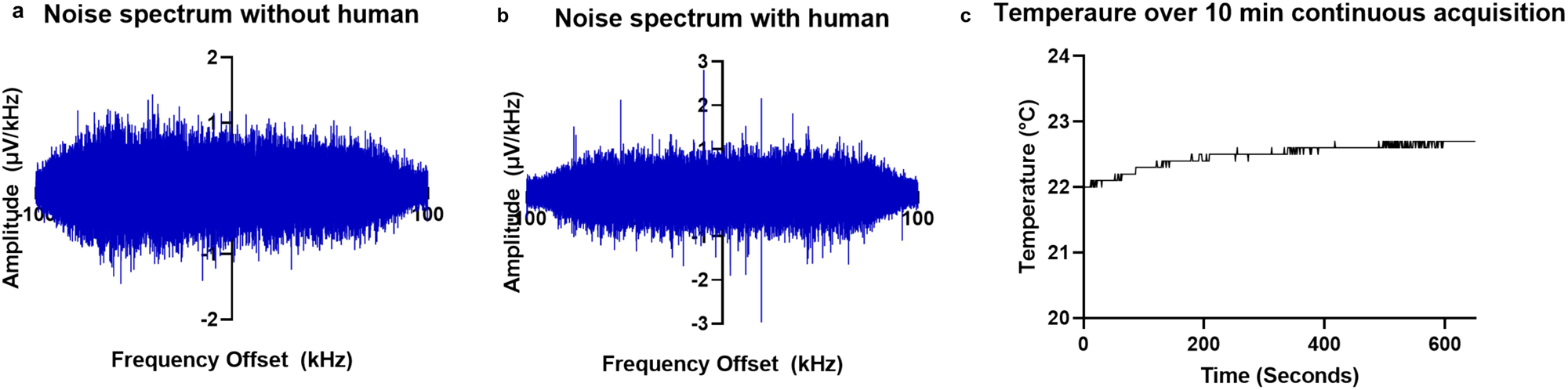

Fig. 2: Sensor noise and temperature performance in clinical environment.
From: Single-sided magnetic resonance-based sensor for point-of-care evaluation of muscle
a Noise spectrum from transceiver coil without human in contact with the sensor, root mean square (RMS) noise = 0.22 μv. b Noise spectrum from transceiver coil with human in contact with sensor, RMS noise = 0.25 μv. c Temperature increase above coil encased by aluminum nitride over a continuous 10-minute acquisition. Source data are provided in a Source data file.
