Fig. 10: Multiple parallel circuits mediate ASH responses to rapid cooling stimulation.
From: Molecular and circuit mechanisms underlying avoidance of rapid cooling stimuli in C. elegans

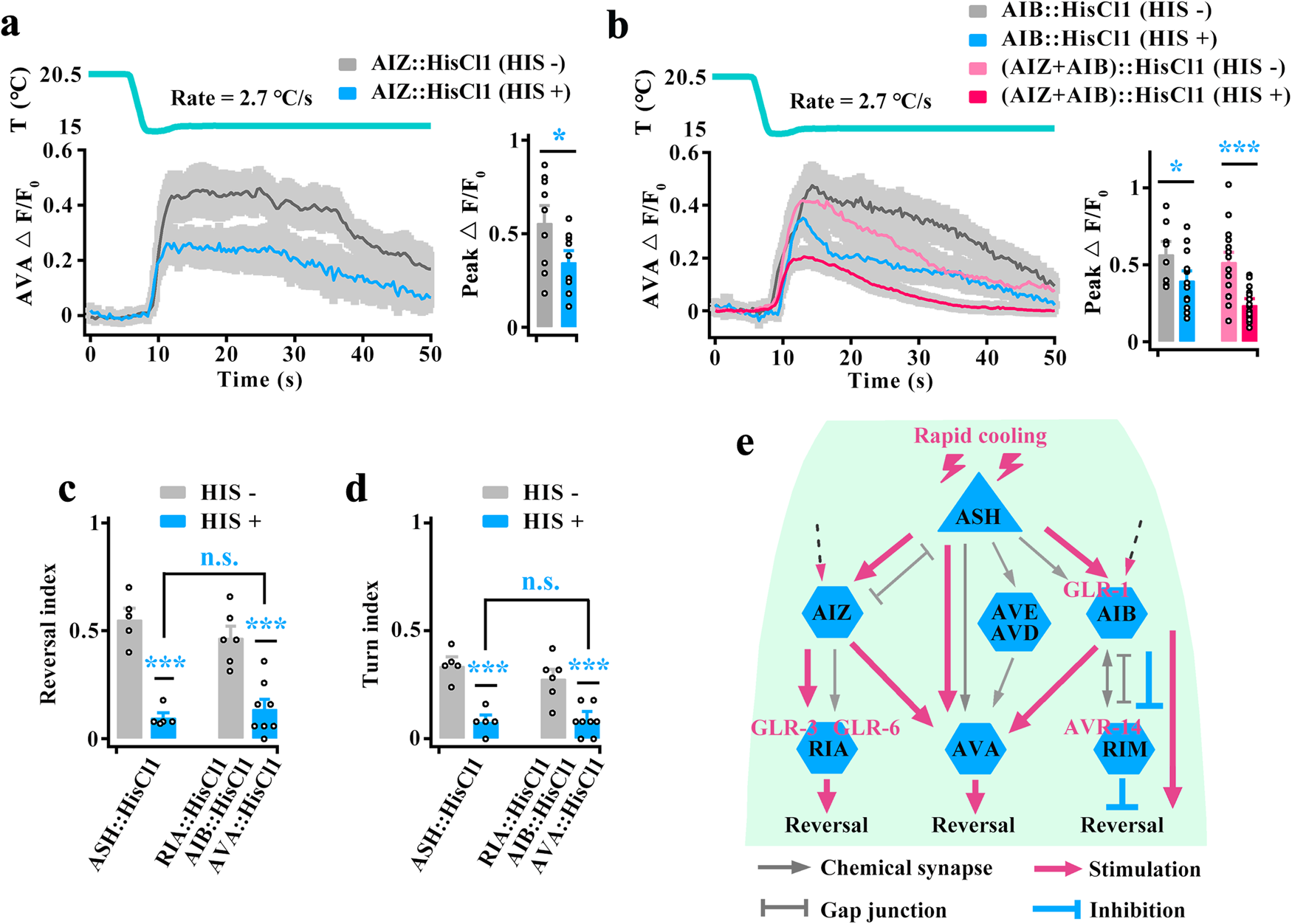

a, b AVA calcium transients induced by rapid cooling in AIZ-silenced (a, n = 9), AIB-silenced or (AIZ + AIB)-silenced (b, n = 8, 14, 15 and 17) worms. c, d Comparison of cooling-evoked reversal and turn index between ASH-silenced and (RIA + AIB + AVA)-silenced worms. n = 5, 5, 6 and 8 groups for each bar, ≥10 worms/group. e Schematic model showing the molecular and circuit mechanisms of the ASH response to rapid cooling stimuli. Data are showed as mean ± SEM. Student’s t test or Mann‒Whitney rank sum test (two-sided) in this figure. *p < 0.05, ***p < 0.001, p > 0.05 denotes not significant (n.s.).
