Fig. 1: Overview of the fabricated memristor-based binarized neural network.

From: Powering AI at the edge: A robust, memristor-based binarized neural network with near-memory computing and miniaturized solar cell

Fig. 1

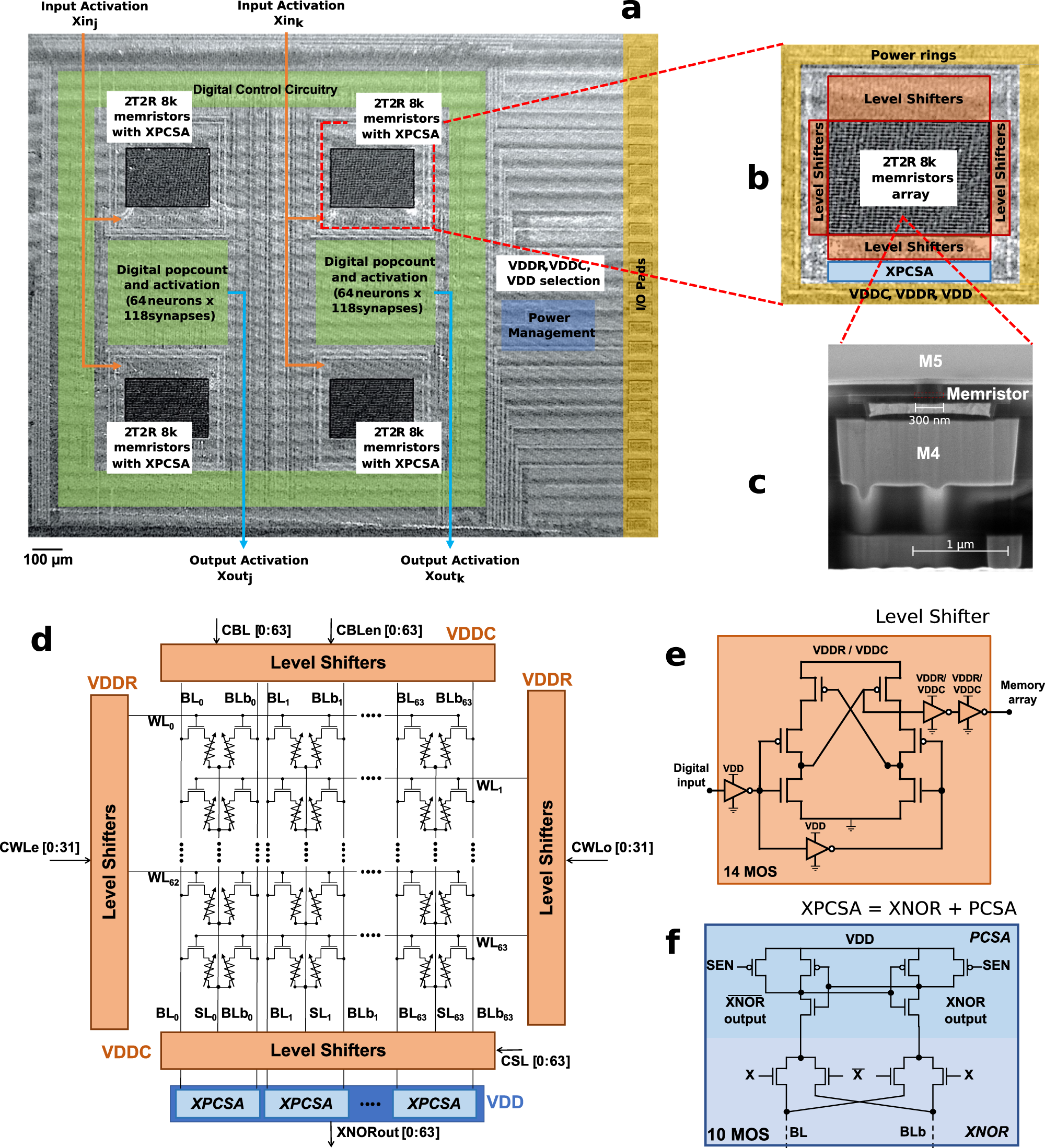

a Optical microscopy image of the fabricated die, showing four memory modules and their associated digital circuitry and power management unit. b Detail on one of the memory modules. c Cross-sectional scanning electron micrograph of a hybrid CMOS/memristor circuit, showing a memristor between metal levels four and five. d Schematic of a memory module. For each operation mode, biasing conditions for WL, BL, and SL are given with respect to the power domain (VDDC, VDDR) and VDD. e Schematic of the level shifter, used in d for shifting digital voltage input to medium voltages needed during programming operations or nominal voltage during reading operations of the memristors. f Schematic of the differential pre-charge sense amplifier PCSA, used to read the binary memristor states, with embedded XNOR function, to compose a XPCSA: it computes an XNOR operation between input activation X and weight (memristor value) during bit-cell sensing.
