Fig. 3: A East-West keogram (ewogram) of the FAC at the ionosphere and magnetosphere convection (Vϕ) on the magnetosphere equatorial plane from the global MHD simulations. | Nature Communications

Fig. 3: A East-West keogram (ewogram) of the FAC at the ionosphere and magnetosphere convection (Vϕ) on the magnetosphere equatorial plane from the global MHD simulations.

From: Global-scale magnetosphere convection driven by dayside magnetic reconnection

Fig. 3: A East-West keogram (ewogram) of the FAC at the ionosphere and magnetosphere convection (Vϕ) on the magnetosphere equatorial plane from the global MHD simulations.

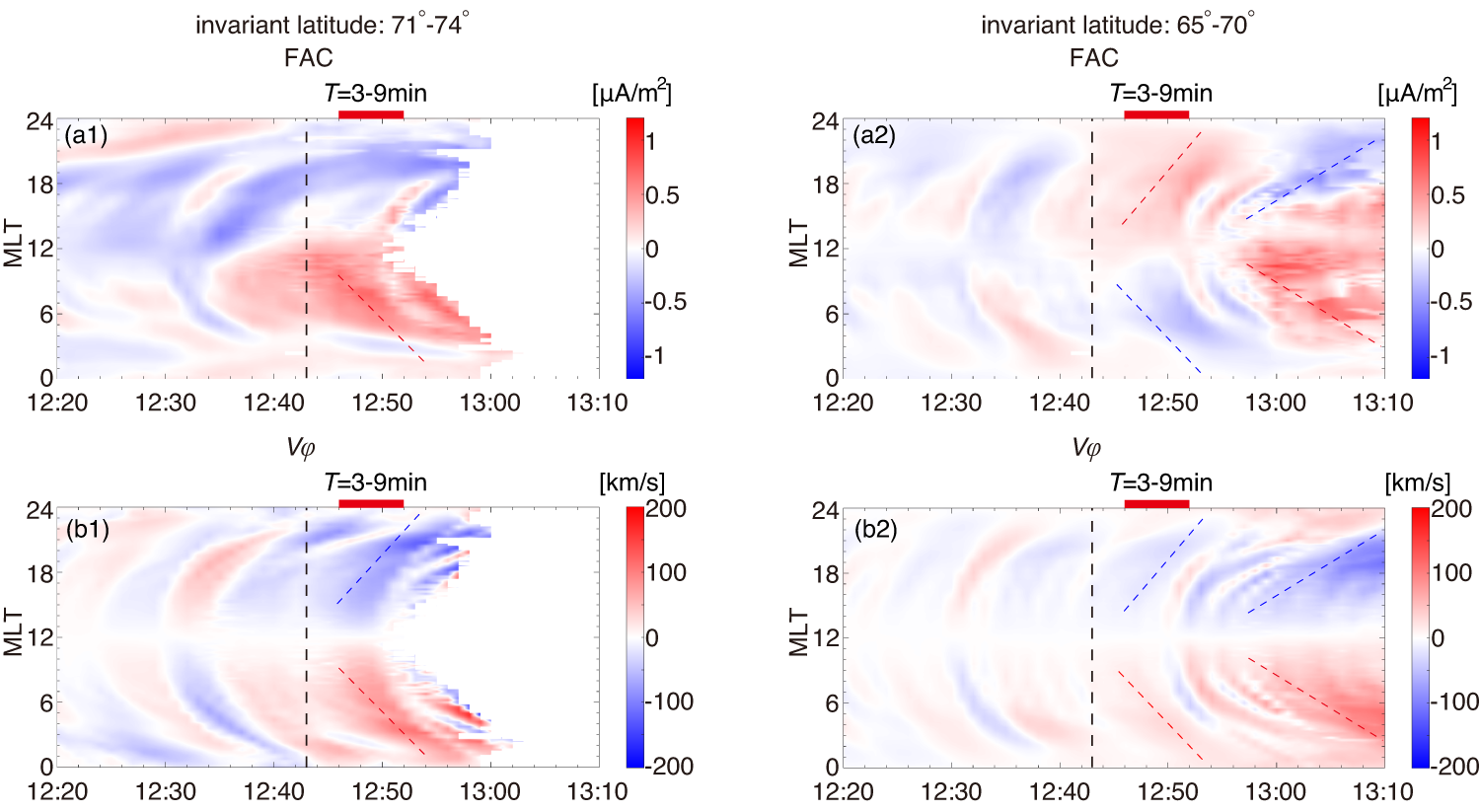

a1 The average FAC and b1 Vϕ in the invariant latitude 71°-74°. a2 The average FAC and b2 Vϕ in the invariant latitude 65°-70°. Nan values are outside the closed-part of the magnetosphere. The Blue and red dash lines illustrate evolution along the east-west direction.
