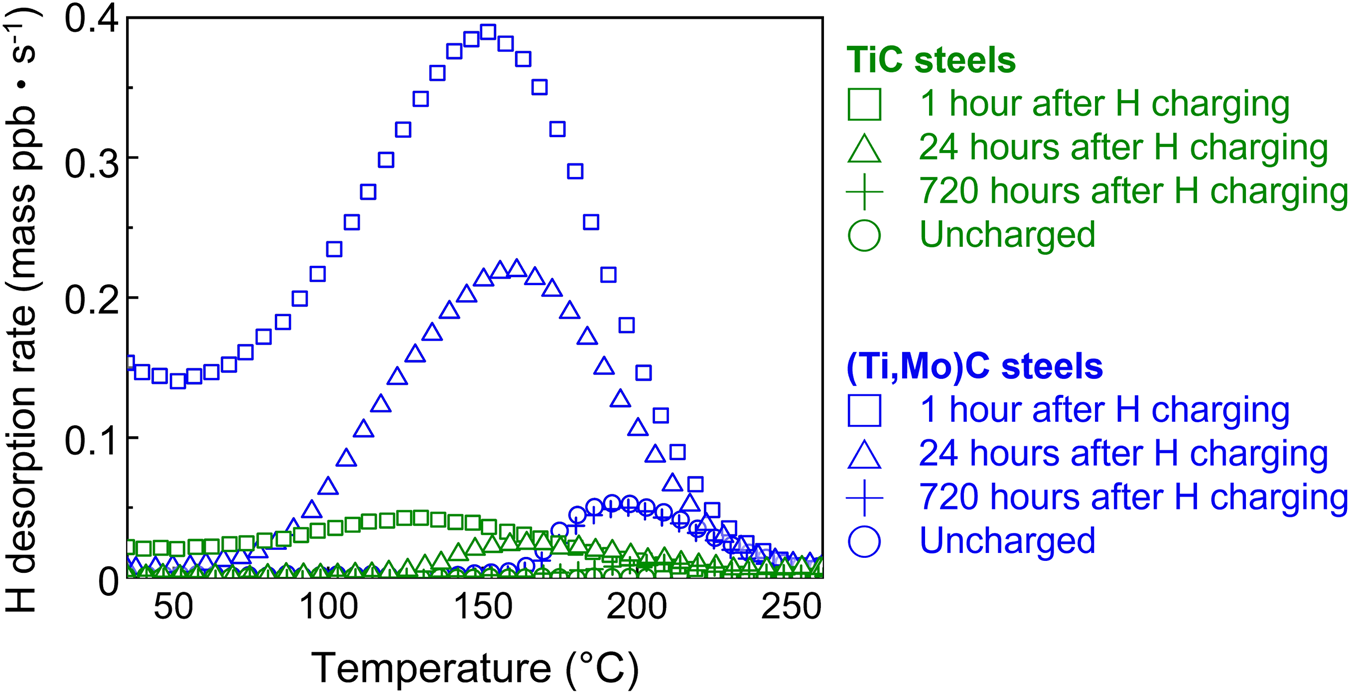

Fig. 2: Quantitative measurement of hydrogen trapping in the interphase-precipitate-containing ferritic steels by thermal desorption spectroscopy (TDS).

From: Engineering metal-carbide hydrogen traps in steels

Fig. 2

The steels with TiC (green) and (Ti,Mo)C (blue) after charging and room-temperature desorption for 1 hour (square), 24 h (triangle) and 720 h (plus sign), compared to the uncharged sample (circle).
