Fig. 6: Statistical analyses of deuterium distributions in relation to interface and carbide core locations from Figs. 4 and 5 results.

From: Engineering metal-carbide hydrogen traps in steels

Fig. 6

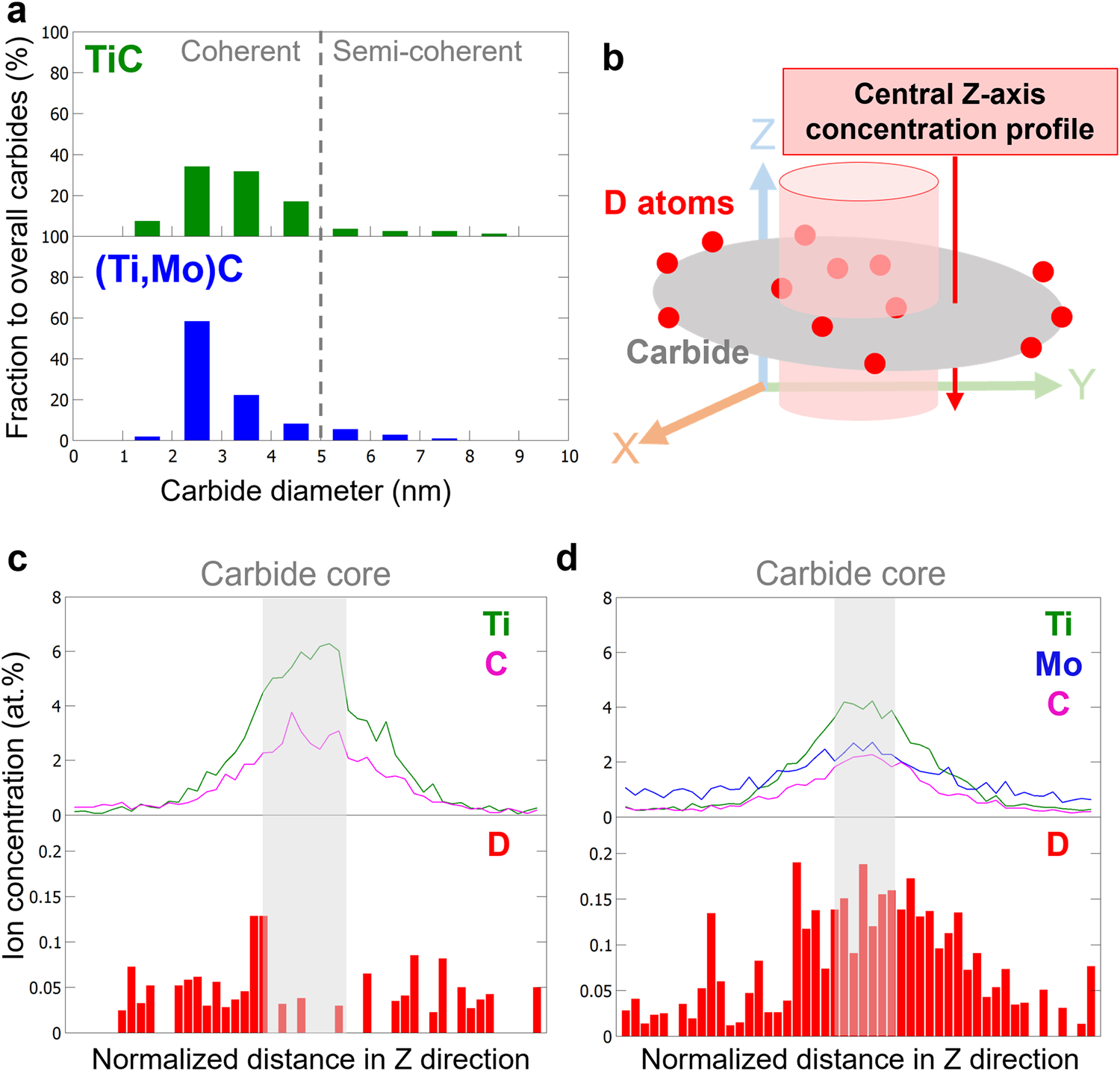

a presents the carbide size histograms of TiC (green) and (Ti,Mo)C (blue) from the Figs. 4 and 5 datasets, respectively. b is a schematic illustration of the method to extract a 1-D Z-axis concentration profile from the center of a carbide in APT dataset. 1-nm step size was used to generate the profiles. c is the overall Z-axis profile from the TiC steels shown in Fig. 4 after normalizing each profile with corresponding carbide size and superimposing all the resulting dimensionless profiles. d is the counterpart of c for (Ti,Mo)C from Fig. 5.
