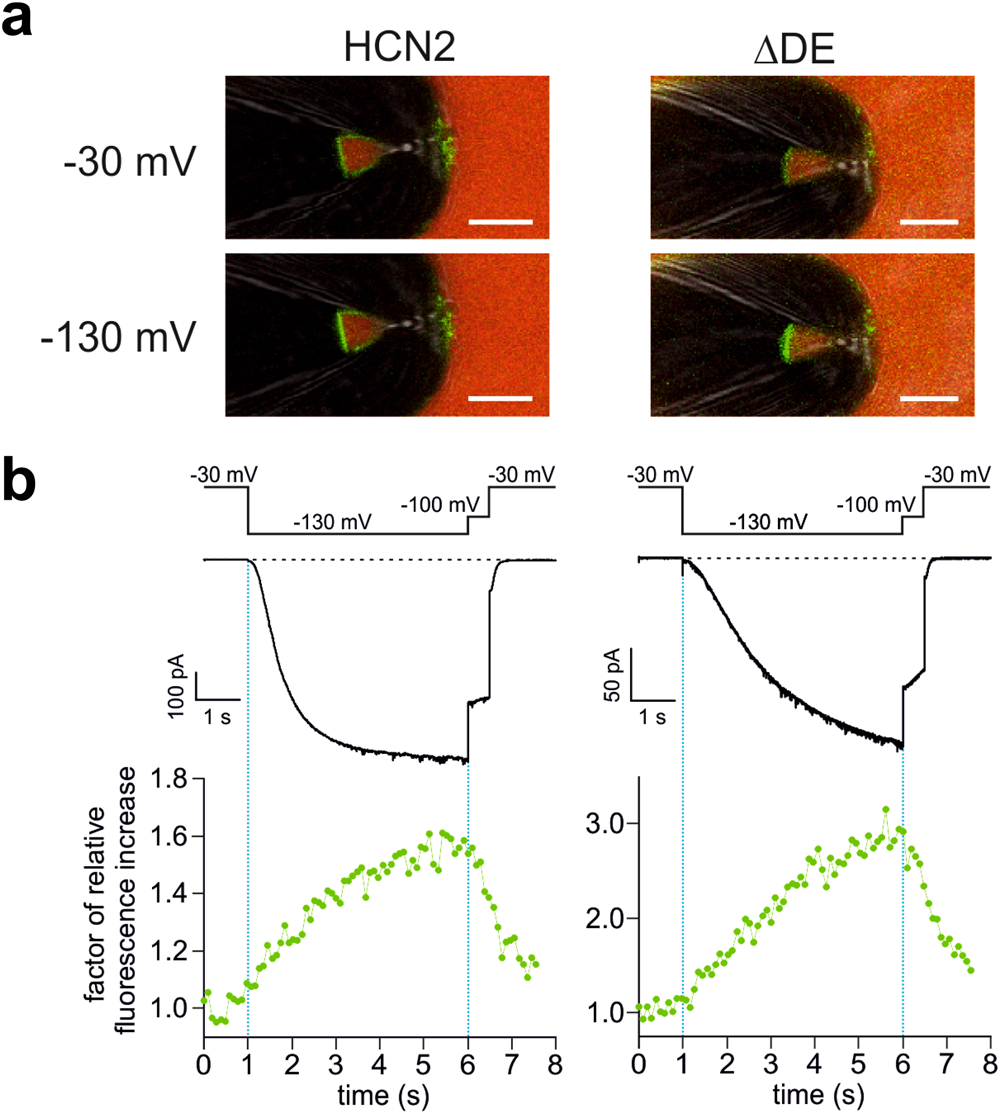

Fig. 9: Activation-induced affinity increase in HCN2 and ∆DE measured by confocal patch-clamp fluorometry (cPCF).
