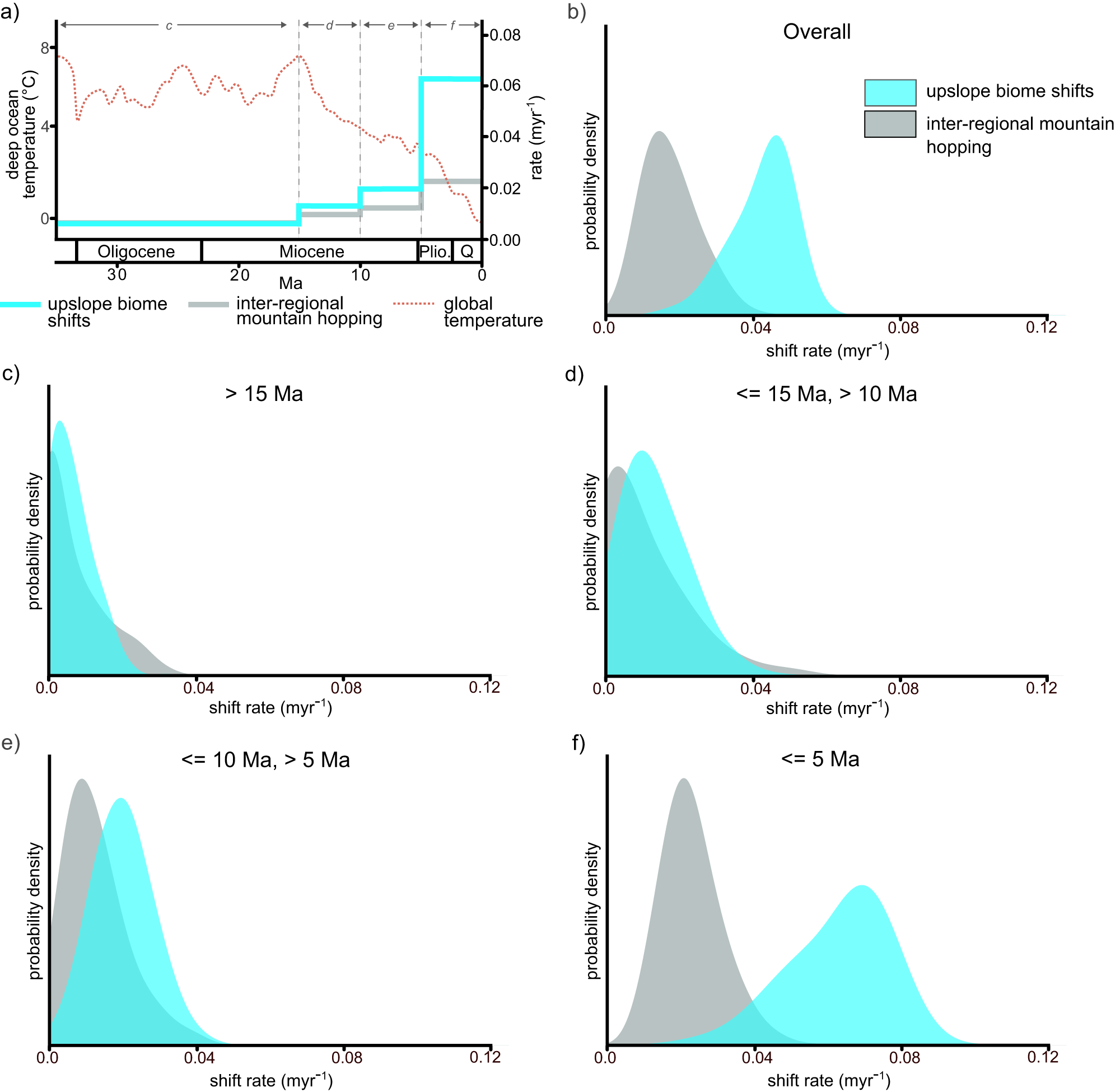

Fig. 3: Rates of upslope biome shifts and inter-regional mountain hopping.
From: Repeated upslope biome shifts in Saxifraga during late-Cenozoic climate cooling
a Posterior mean rate of upslope biome shifts and inter-regional mountain hopping through time, as well as global climate through time (estimated by deep sea oxygen isotope records)52. The vertical dotted lines delimit the time intervals that are referenced in (c–f). Pli. Pliocene, Q. Quaternary. b–f Posterior distributions of rates of upslope biome shifts and inter-regional mountain hopping from the ClaSSE model, with (b) showing rates across the entire time-calibrated phylogeny, (c) showing rates at times over 15 Ma, (d) showing rates 15 Ma or less, but over 10 Ma, (e) showing rates 10 Ma or less, but over 5 Ma, and (f) showing rates 5 Ma or less. Distribution data are available on Zenodo, the biome and regional assignment database is available in Supplementary Data File 3.
