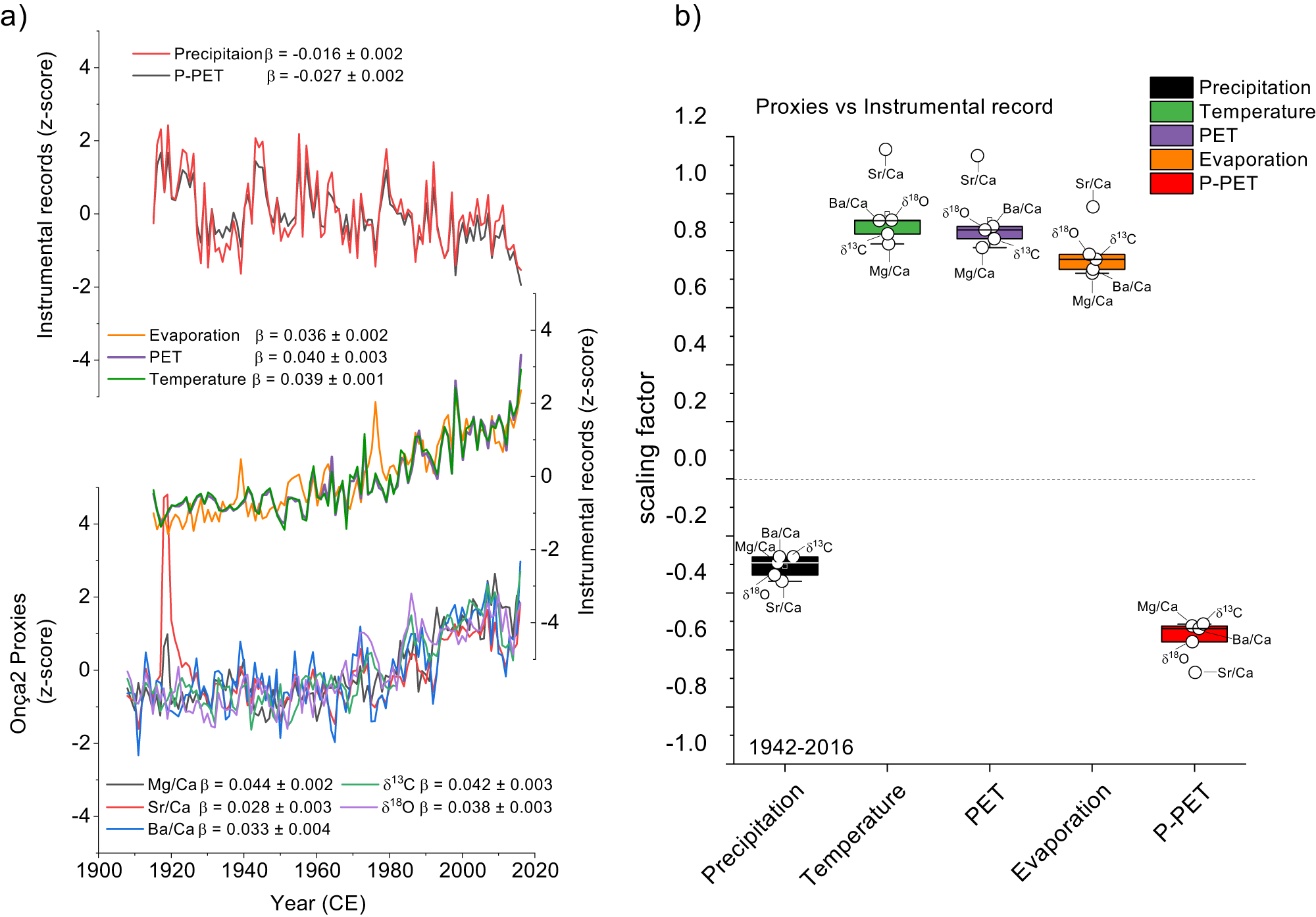

Fig. 3: Comparison between geochemical proxies and environmental drivers derived from local meteorological stations.
From: Modern anthropogenic drought in Central Brazil unprecedented during last 700 years
a comparison between z-scored (between 1915 and 2016) data from geochemical proxies (Mg/Ca, Sr/Ca, Ba/Ca, δ18O, and δ13C) with instrumental records of regional temperature, precipitation, potential evaporation, potential evapotranspiration (PET) and P-PET index. b Whisker box plots of regression coefficients between geochemical proxies and main environmental drivers between 1942 and 2014 using a smoothed 5-year running mean: precipitation (black), temperature (green), potential evapotranspiration (purple), potential evaporation (orange) and precipitation potential evapotranspiration (red). The slopes of the proxy time series trends after 1942 (determined using a regime-shift test) are represented by regression coefficients (β) and are statistically significant at P < 0.001. Temperature data are derived from (CRU TS 4.06 at 13°–17°S; 42.5°–46.5°W), precipitation and evaporative potential are derived from INMET and ANA meteorological stations shown in Fig. 1. Potential evapotranspiration was calculated using the Thornthwaite (1948) equation from temperature data and adjusted to Penman–Monteith (FAO-56) using monthly coefficient corrections according to Aschonitis51.
