Fig. 2: Crystal structures of the electrocatalysts.
From: Electrocatalytic water oxidation with manganese phosphates

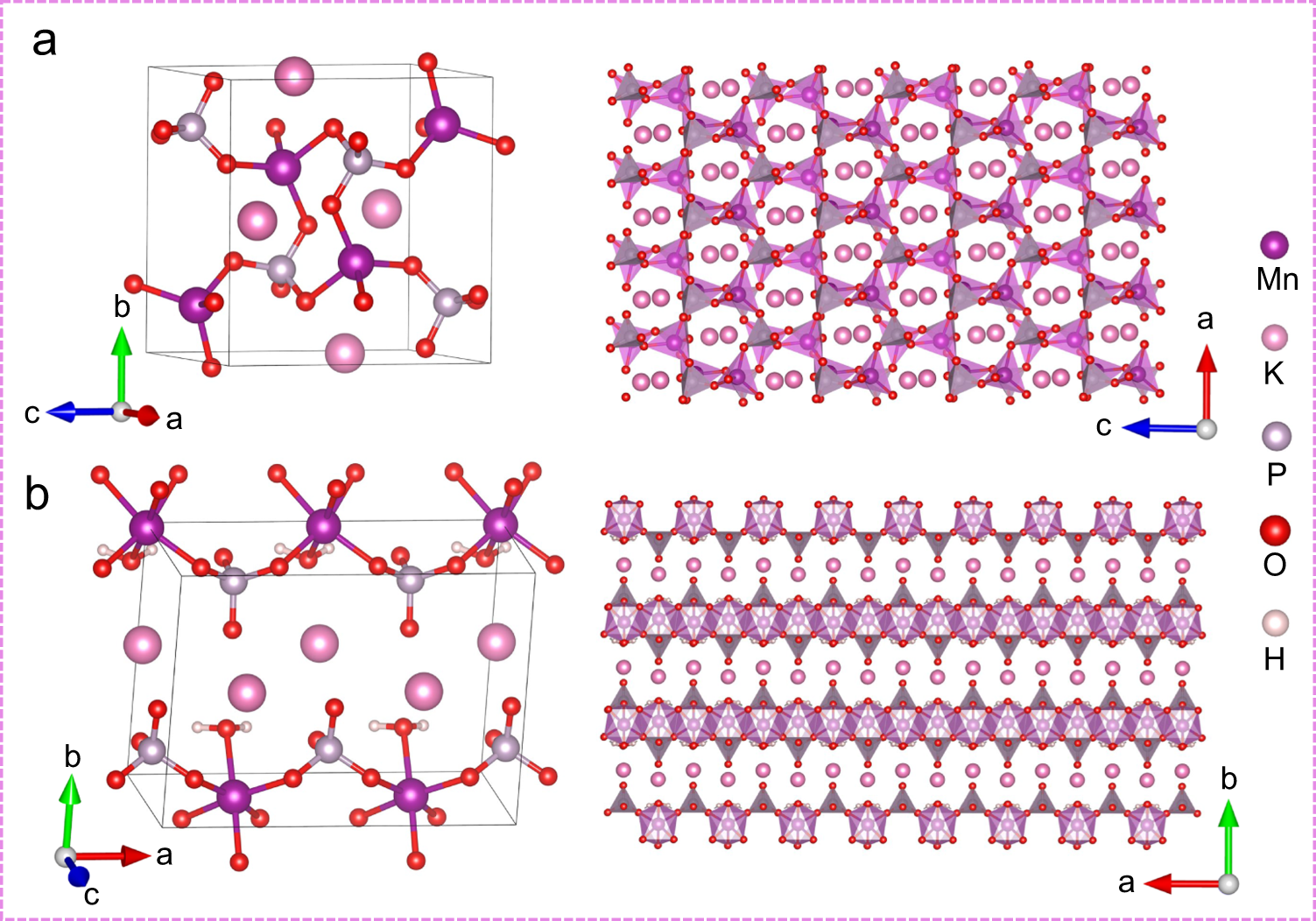

The crystal structures of (a) KMnPO4 and (b) KMnPO4•H2O. The purple motifs are Mn octahedrons and Mn tetrahedrons; the gray motifs are phosphate tetrahedrons.
