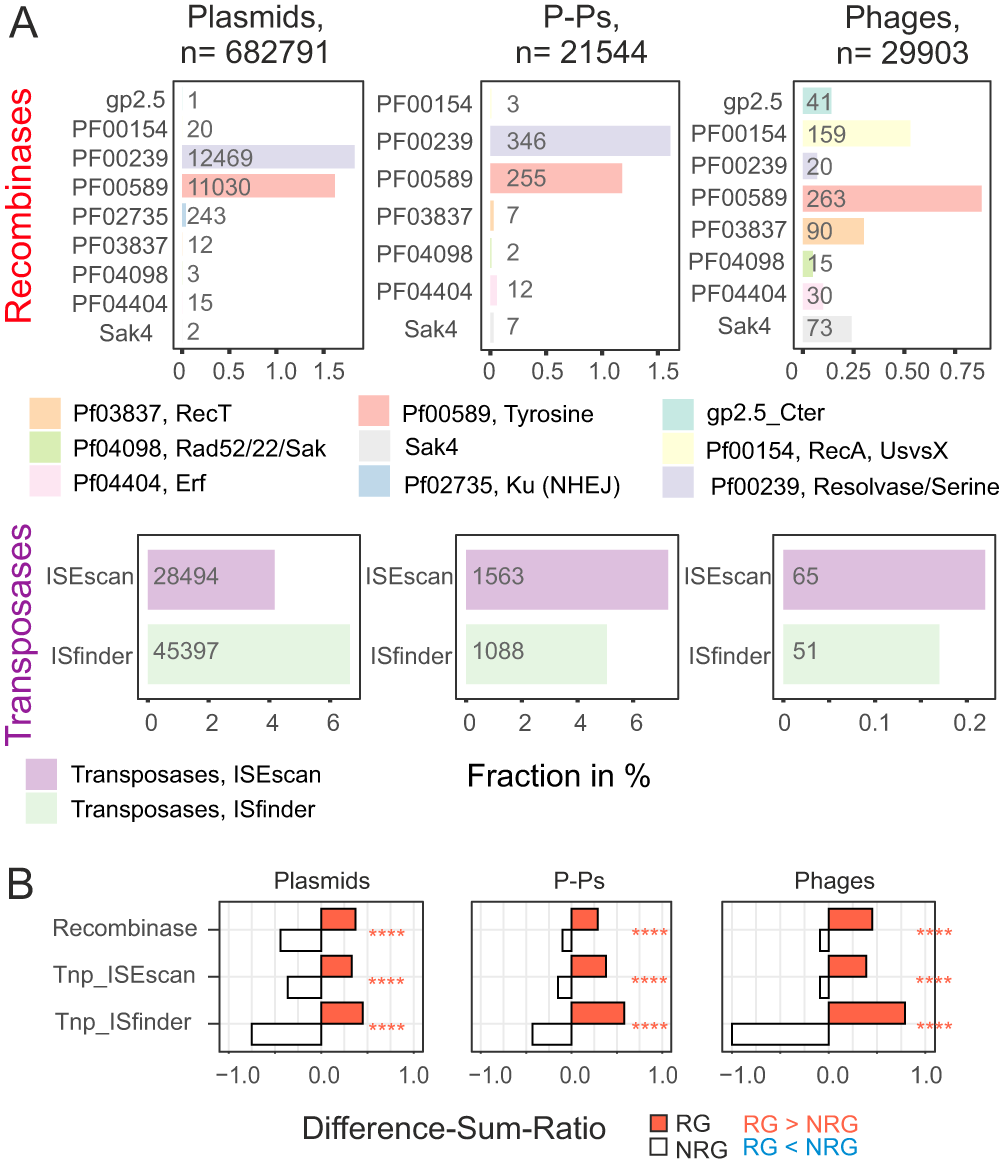

Fig. 4: Recombinases and transposases in plasmids, phage-plasmids and phages.
From: Phage-plasmids promote recombination and emergence of phages and plasmids
A Recombinases and transposases were detected in all recombining genes (RGs) (see Methods). Shown is the fraction (in %) of RGs in all types of mobile elements (counts are shown in the columns). B Enrichment analysis were done as shown in Fig. 3 for recombinases and transposases in RGs vs non-RGs.
