Fig. 3: A plausible mechanism for abnormal thermally-stimulated dynamic phosphorescence.

From: Abnormal thermally-stimulated dynamic organic phosphorescence

Fig. 3

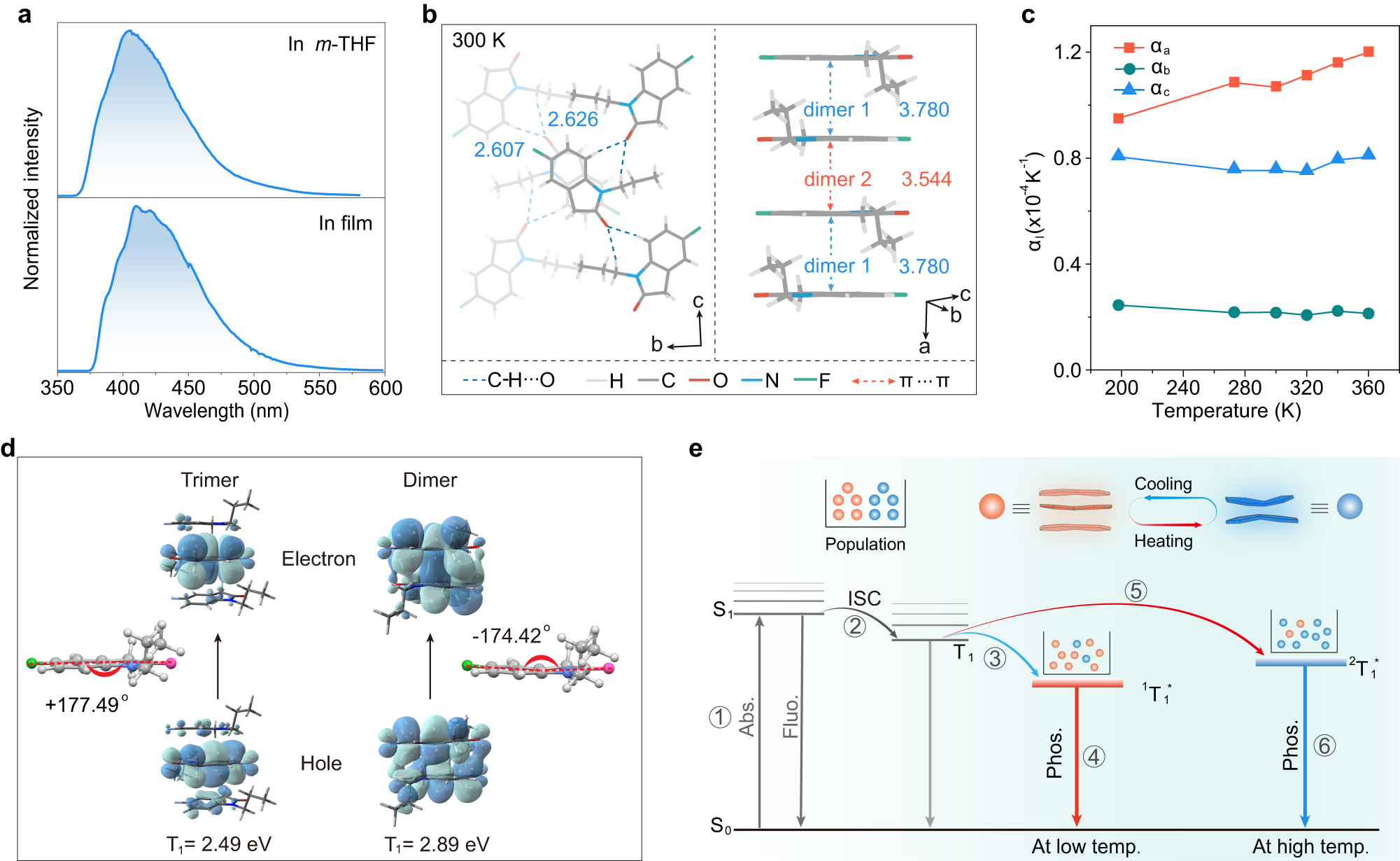

a Normalized phosphorescence spectra of FPO molecule in m-THF solution and PMMA film at 77 K. b Molecular arrangement of FPO molecules viewed along a axis (left) and π-π stacking (right) in crystal. c Thermal expansion coefficient of FPO crystal along the principal axes (ac) at different temperature from 90 to 360 K. d Natural transition orbitals (NTOs) contributing to the lowest-energy triplet transitions of FPO trimer and dimer models in crystal. The inset structures show the molecular conformation in excited state of trimer (left) and dimer (right) models. e Proposed energy transfer processes for thermally-stimulated dynamic phosphorescence. Note that molecules at ground state (S0) reaches to S1 (step 1) after absorption of photons, and then transform to T1 through ISC (step 2). Under lower temperature, the excited molecules at T1 are further stabilized by the triplet excited state (1T1*) of trimer with a lower energy level (step 3), enabling long-lived yellow phosphorescence (step 4). As temperature increases, the excited molecule experiences large conformation adjustment in an environment of uneven intermolecular interactions, which was further stabilized for 2T1* (step 5) of dimer. Finally, a bright cyan-blue phosphorescence was observed via radiative transition from 2T1* (step 6).
