Fig. 5: Wearing comfort and antibacterial perfromances of dual-scale fibrous filters. | Nature Communications

Fig. 5: Wearing comfort and antibacterial perfromances of dual-scale fibrous filters.

From: Ultrathin, ultralight dual-scale fibrous networks with high-infrared transmittance for high-performance, comfortable and sustainable PM0.3 filter

Fig. 5: Wearing comfort and antibacterial perfromances of dual-scale fibrous filters.

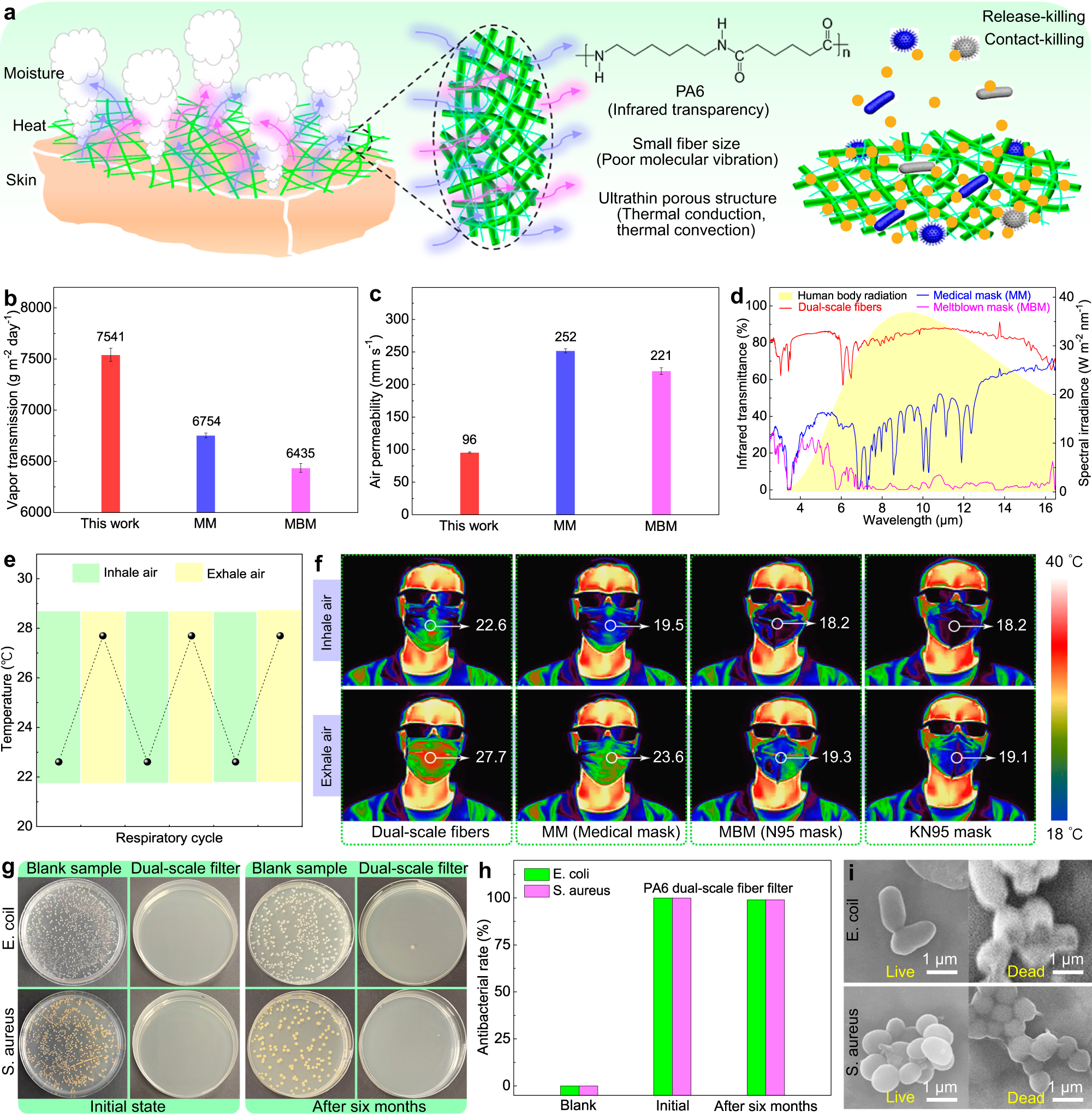

a Diagrams of heat and moisture transfer of dual-scale fibrous filter and its antibacterial mechanism. b Water vapor transmission, (c) air permeability and (d) infrared transmittance of dual-scale fiber filter, MM and MBM. e Surface temperature of face mask during the respiratory cycle. f IR images of dual-scale fiber filter, MM, MBM, KN95 mask. g Quantitative antibacterial images and (h) antibacterial rate of blank sample and dual-scale fiber filter. i SEM images of live and dead bacteria. Error bars represent the standard deviation of the measured properties and the samples are samples are at least three. Source data are provided as a Source Data file.
