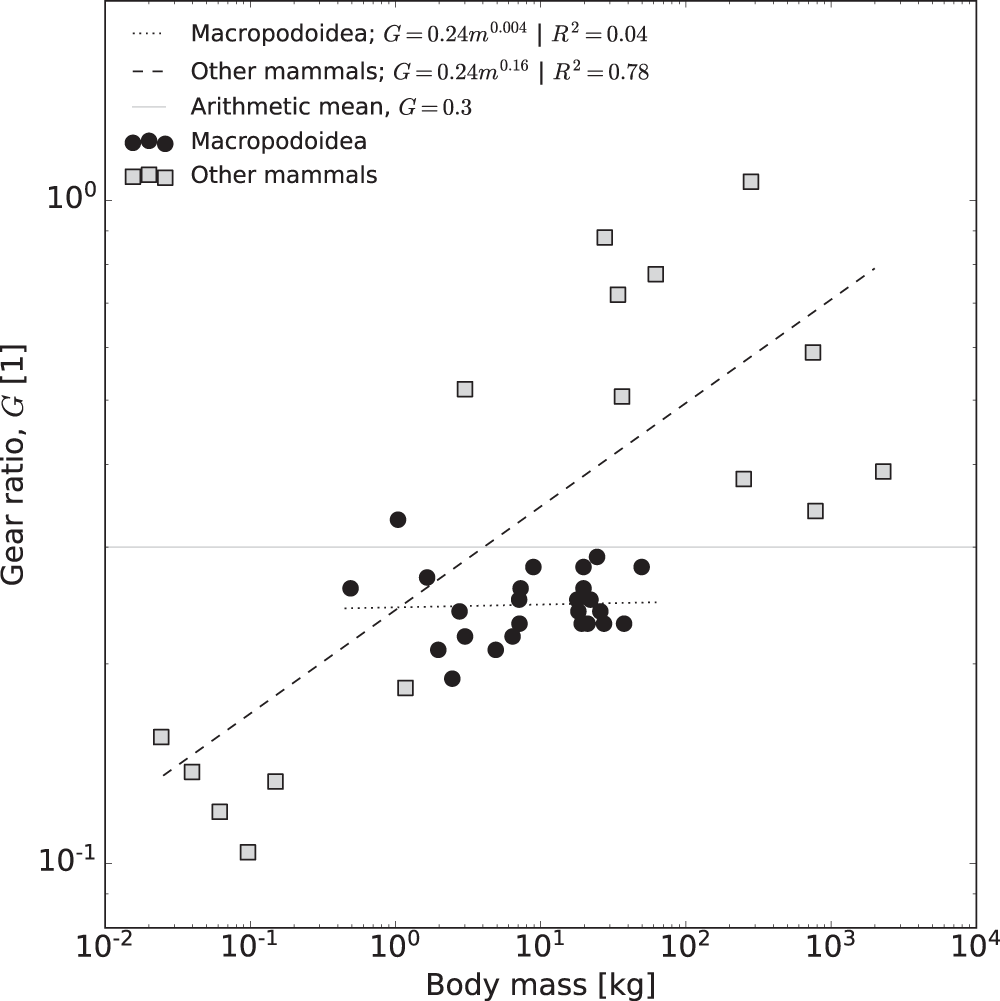

Fig. 2: The variation of the musculoskeletal gear ratio, G, with size across 42 vertebrate species varying by five orders of magnitude in mass^{40,41,42,43,107}.

In the initial across-clade analysis of the allometry of maximum running speed—which included invertebrates much smaller than 0.01 kg and vertebrates heavier than 2 t—an average gear ratio, G = 0.3 (solid line) was used, because it complies with the parsimonious assumption of geometric similarity, and because the gear ratio is confounded by evolutionary history, as evidenced by the different slopes for quadrupedal mammals vs. bipedal Macropodoidea, so that extrapolation bears significant risks [dashed vs. dotted line^41,107]. The assumption of a size-invariant gear ratio is subsequently relaxed for the size range for which experimental data are available, and the consequences of a size-variable gear ratio are discussed. Source data are provided as a Source Data file.
