Fig. 2: Thermal dynamics of ZW-UiO-67·MSA.
From: Melt-quenched glass formation of a family of metal-carboxylate frameworks

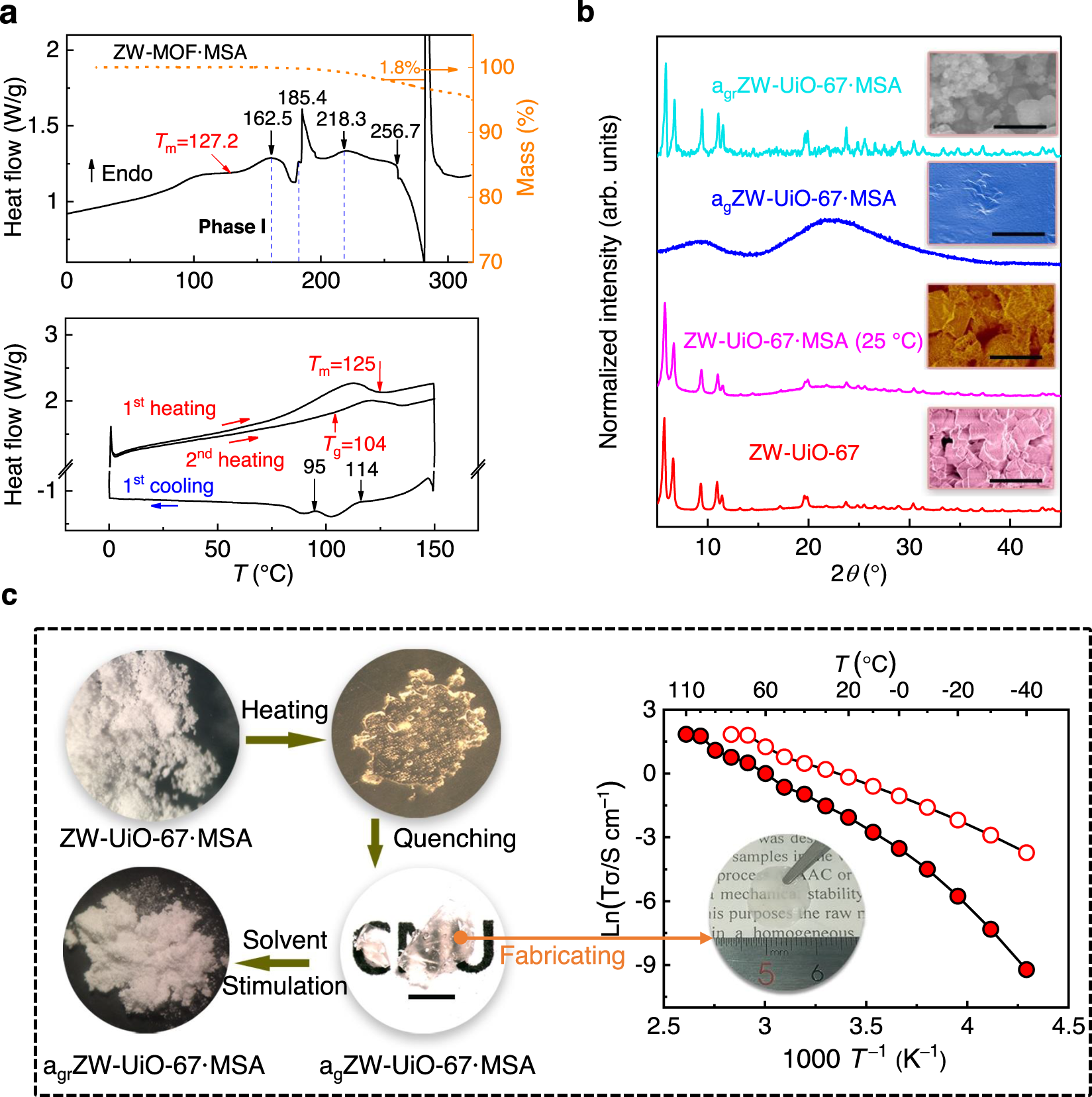

a TGA plot (yellow), DSC curve of ZW-UiO-67·MSA from 0 to 320 °C (top) and cyclic curve from 0 to 150 °C (bottom). The slight difference of Tm is due to the different measurement batches. b PXRD patterns of ZW-UiO-67, ZW-UiO-67·MSA, agZW-UiO-67·MSA and agrZW-UiO-67·MSA with inset SEM images (Supplementary Figs. 4, 5, and 10). Bar scale: 2 μm. c Microscopical images of the melted, quenched and solvent stimulated products of agrZW-UiO-67·MSA, and temperature-dependent proton conductivities of agZW-UiO-67·MSA glass sheet (red) and ZW-UiO-67·MSA (white).
