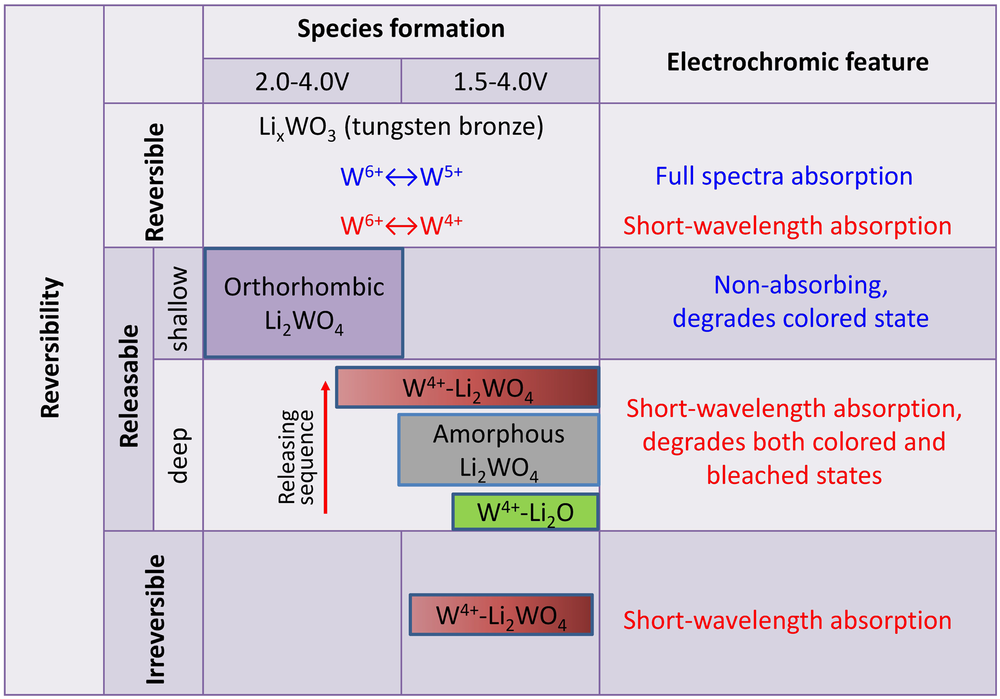

Fig. 5: A general picture of the ion intercalation, trapping and detrapping in a-WO3.
From: Capturing ion trapping and detrapping dynamics in electrochromic thin films
It shows the formed species, reversibility and how it varies the optical modulation.
