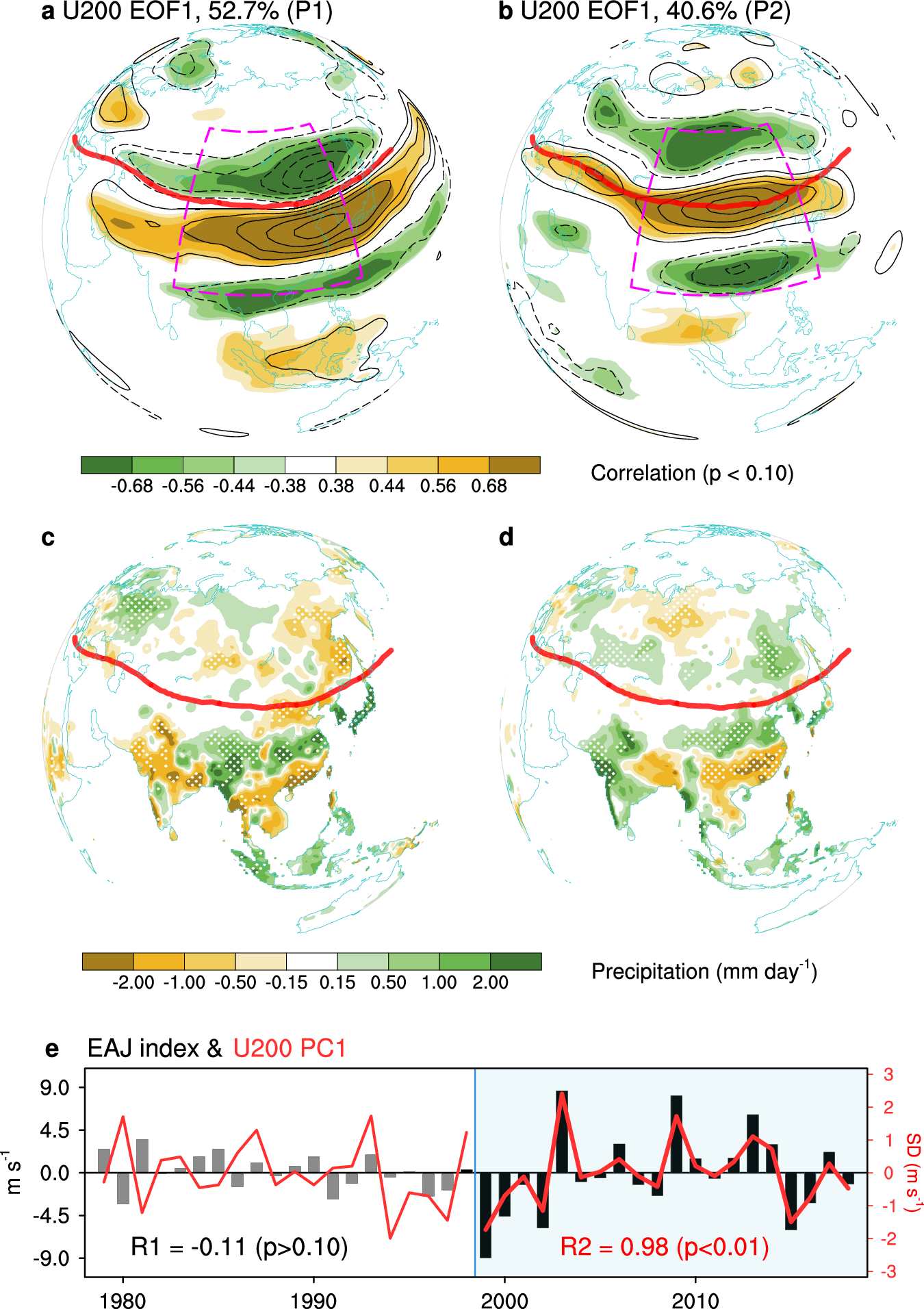

Fig. 3: Shifting regimes of large-range Eurasian westerlies and rainfalls.
From: Atlantic origin of the increasing Asian westerly jet interannual variability
Spatial distribution of the first empirical orthogonal function (EOF) mode of 200-hPa zonal wind (U200) anomalies (shading: correlation map; contour: regression map) over East Asia for P1 (a) and P2 (b). Boxes with purple dash line indicates the region for performing EOF decomposition. Spatial distribution of rainfall anomalies related to corresponding first principal component (PC1) for P1 (c), and P2 (d), with 90% significant region stippled. e Interannual time series of detrended East Asian jet index (EAJ; black bar) during 1979–2018. Overlapped red lines represent the corresponding normalized PC1s. Source data are provided as a Source Data file. R1 and R2 is the correlation coefficients between PC1 and EAJ index for P1 and P2, respectively. Red dash line in (a–d) represents the jet axis in 200 hPa in high summer.
