Fig. 1: Overview of the study.

From: An exposome atlas of serum reveals the risk of chronic diseases in the Chinese population

Fig. 1: Overview of the study.The alternative text for this image may have been generated using AI.

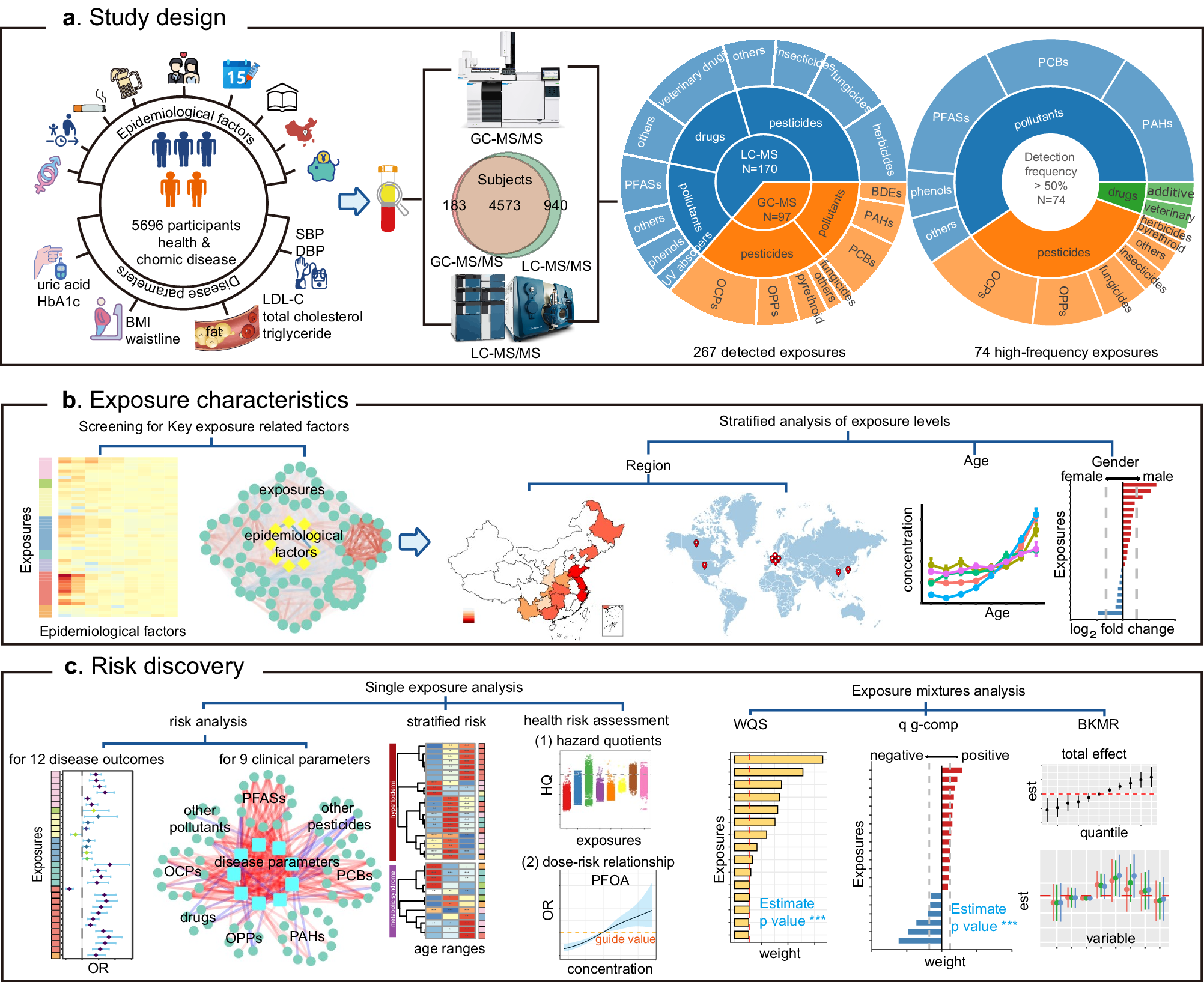

a Study design: Serum samples of 5696 participants were included in the study, 9 basic epidemiological information and 9 chronic disease-related clinical parameters were collected. Two platforms of LC-MS/MS and GC-MS/MS were used to detect 267 exposures, and 74 high-frequency exposures were determined. b Exposures characteristics: Exposures and basic epidemiological factors were associated, according to these factors, participants were stratified to analyze the distribution characteristics of exposures. c Risk discovery. First, single-exposure analysis showed the risk, stratified risk and health risk assessment of each exposure to chronic disease, and then exposure mixtures analysis showed risk effects of exposure mixtures on related chronic diseases based on 3 multi-exposure models. HbA1c glycated hemoglobin, BMI body mass index, LDL-C low density lipoprotein cholesterol, SBP systolic blood pressure, DBP diastolic blood pressure, OCP organochlorine pesticide, OPP organophosphorus pesticide, PAH polycyclic aromatic hydrocarbon, PCB polychlorinated biphenyl, PFAS perfluoroalkyl substance, WQS weighted quantile sum regression, q g-comp quantile g-computation, BKMR Bayesian kernel machine regression.
