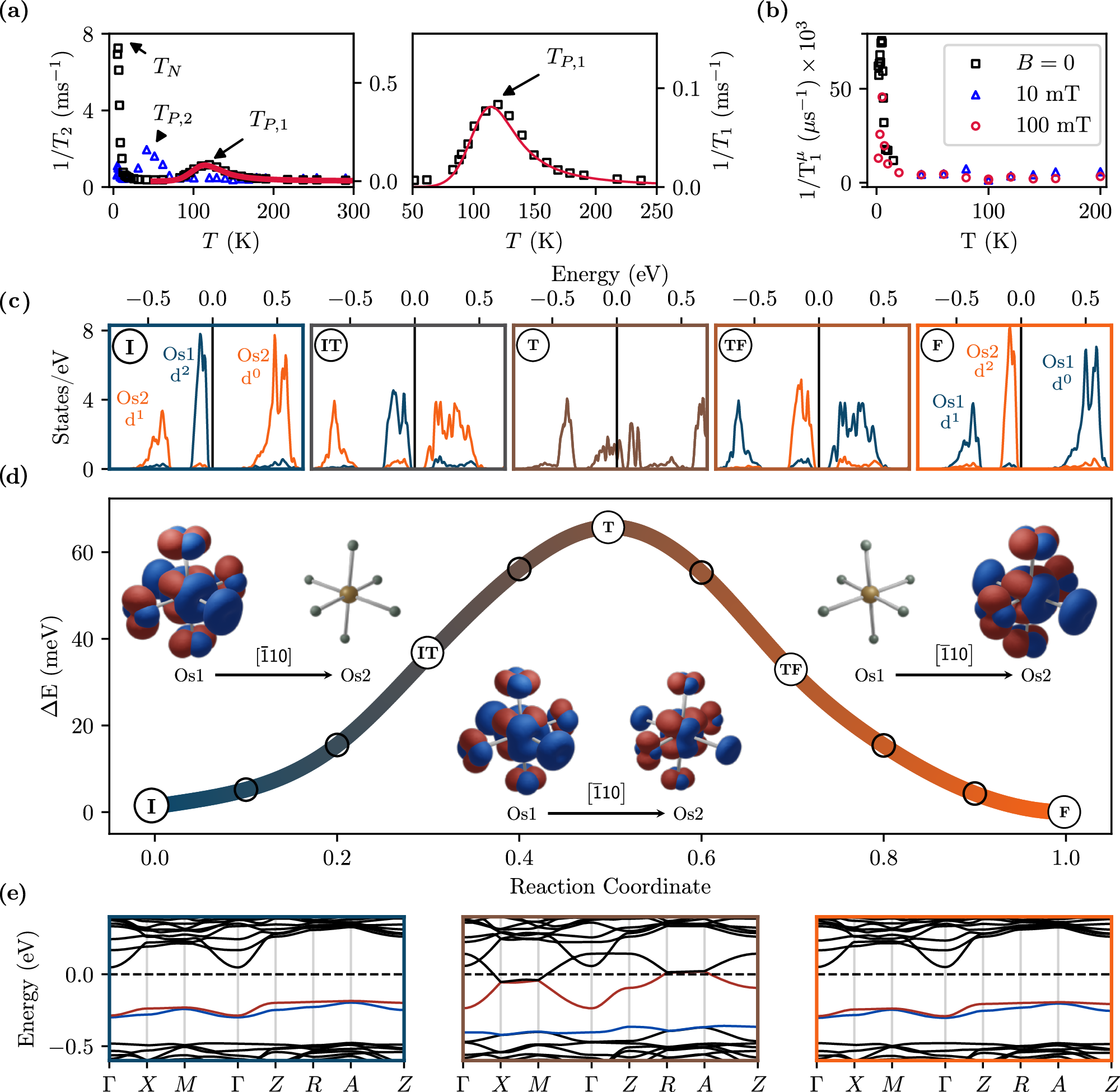

Fig. 2: Polaron hopping: experiment and DFT.
a NMR spin-lattice (square) and spin-spin (triangles) relaxation rates showing an anomalous peak at 130 K and 50 K due to a dynamical process. The 1/T1 anomalous peak is detailed in the right plot. The curve fit (red solid line) to a thermally activated BPP model provides an activation energy Ea = 74(2) meV. b μSR data showing only a peak due to the magnetic transition but no high temperature anomalous feature corresponding to the NMR one. c Evolution of the density of states around the Fermi level for selected snapshots across the hopping path displayed in (d), projected onto the initial (I, dark blue) and final (F, orange) Os sites. The five plots correspond to reaction coordinate equal to 0.0 (I), 0.3 (IT), 0.5 (T), 0.7 (TF) and 1.0 (F). The d2 bipolaron charge is gradually transferred from the initial and final hosting sites. At the transition state (T, at 0.5) the charge is equally distributed between both Os sites giving rise to an adiabatic weakly metallic transient state (brown). d Potential energy for a bipolaron migrating from I to F with the charge density projected on the two neighboring Os atoms, using a color gradient from blue (bipolaron fully localized in I) to orange (bipolaron fully localized in F). The insets show the charge density isosurface decomposed over the bipolaron bands PB1 (blue) and PB2 (red). The resulting hopping barrier, 66 meV, is in excellent agreement with the experimentally-derived activation energy. e band structure around the Fermi level at the initial (I), transition (T) and final (F) point of the hopping process.
