Fig. 5: Distribution of model correlation values grouped by participant’s highest performing model. | Nature Communications

Fig. 5: Distribution of model correlation values grouped by participant’s highest performing model.

From: Face and context integration in emotion inference is limited and variable across categories and individuals

Fig. 5

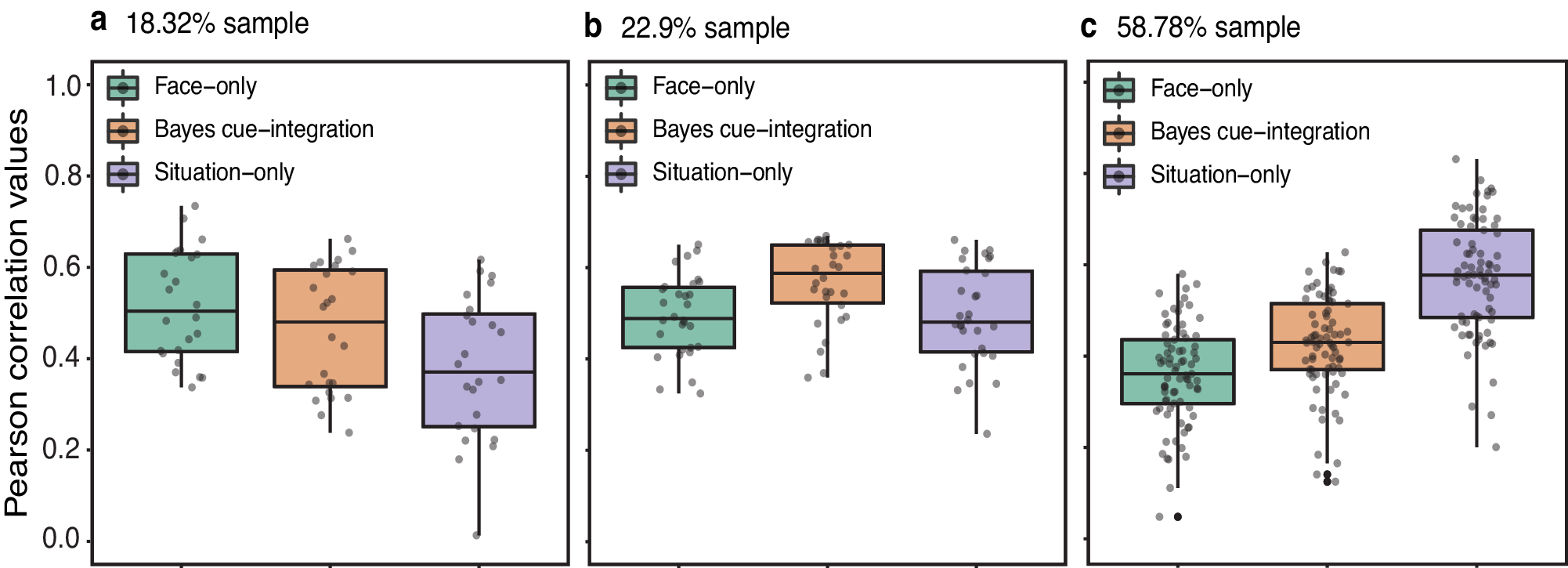

Distribution of Pearson correlation values for Face-only, Bayes cue-integration, and Situation-only model for the group of participants who had the highest correlation for a Face-only model (N = 24; 18.32%); b Bayes cue-integration model (N = 30; 22.9%) and c Situation-only model (N = 77, 58.78%) respectively in Study 2. The error bars represent standard deviation. The center line in the box plots represents the median correlation value for each condition. The upper and lower limits of each boxplot represent the upper (75th percentile) and lower (25th percentile) quartiles of correlations values for each condition and the whiskers extending from the box represent the 1.5x interquartile range.
