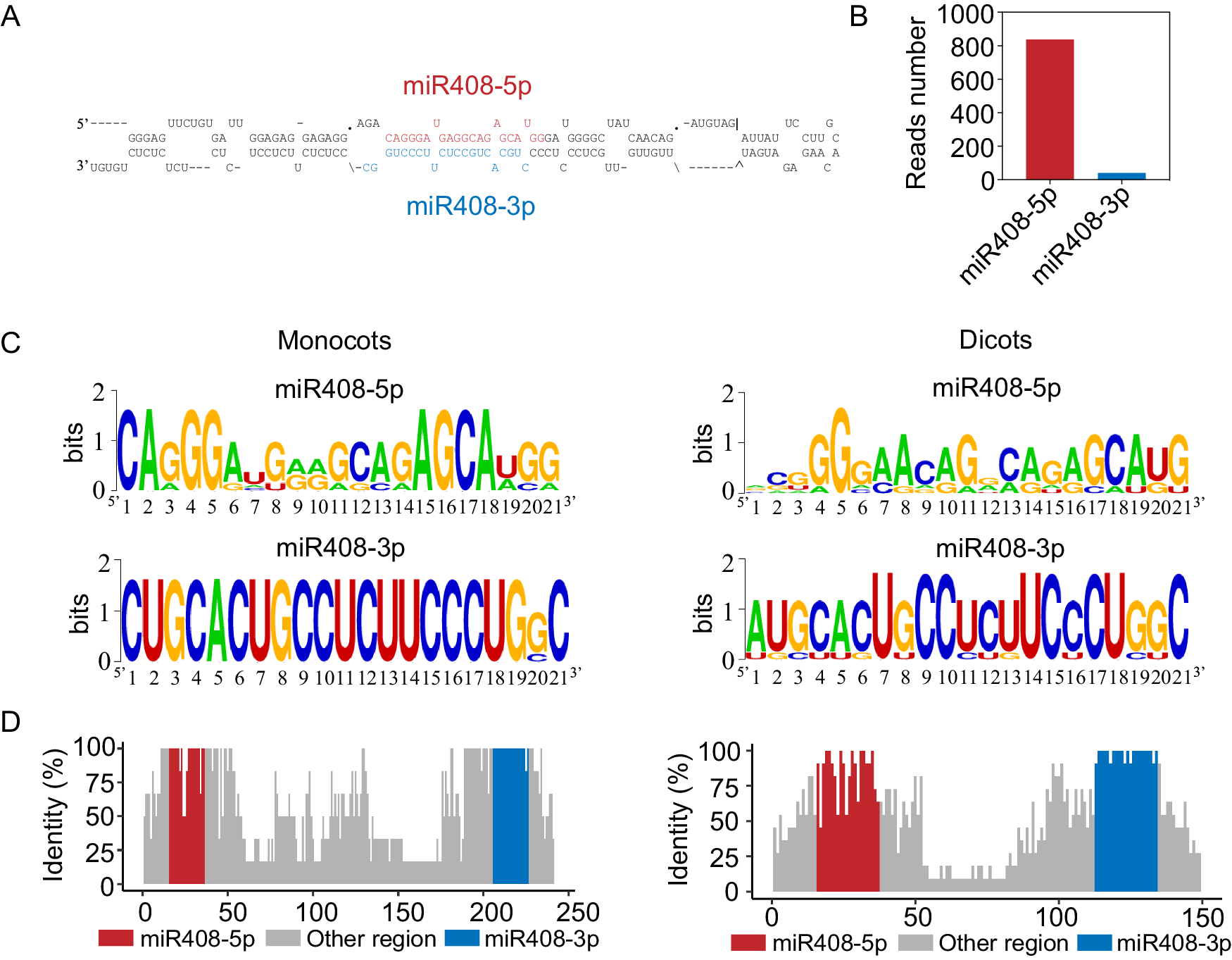

Fig. 1: Identification and conservation analysis of miR408-5p and miR408-3p in plants.
From: Switching action modes of miR408-5p mediates auxin signaling in rice
A Secondary structure of MIR408 precursor in rice. Red sequences indicate mature miR408-5p while blue sequences indicate mature miR408-3p. B Reads number of rice miR408-5p and miR408-3p in miRbase. C Sequences of miR408-5p and miR408-3p in monocots and dicots shown by seqlogo. D The evolutionary analysis of MIR408 precursor in monocots and dicots. The precursor sequence data are collected from miRbase website. Red and blue bars denote miR408-5p and miR408-3p regions, respectively. X-axis means the length of MIR408 precursor and y-axis indicates the value of identical sequences. Source data underlying (B) are provided as a Source Data file.
