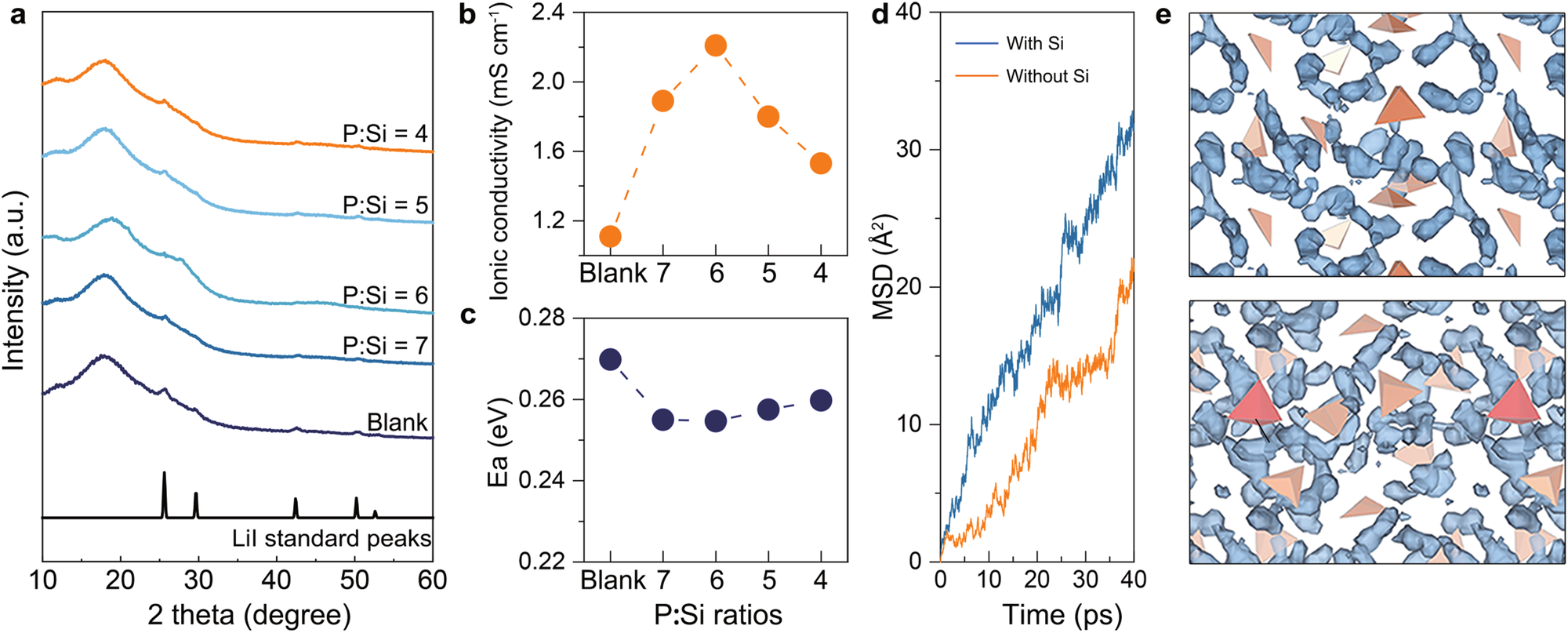

Fig. 3: Phase characterizations and ion transport capability of the synthesized electrolytes.
From: Deciphering the critical role of interstitial volume in glassy sulfide superionic conductors
a The XRD spectra of synthesized series electrolytes. b The ionic conductivity of synthesized series electrolytes. c The Li+ conduction activation energy of synthesized series electrolytes. d The lithium MSD plot for Li4PS4I (orange) and Li4.125Si0.125P0.875S4I (blue) glass at 600 K from AIMD simulations. e The Li-ion trajectory (blue) in Li4PS4I (top) and Li4.125Si0.125P0.875S4I (bottom) glass at 600 K from AIMD simulations. The orange tetrahedra represents PS43−, the red tetrahedra represents SiS44−.
