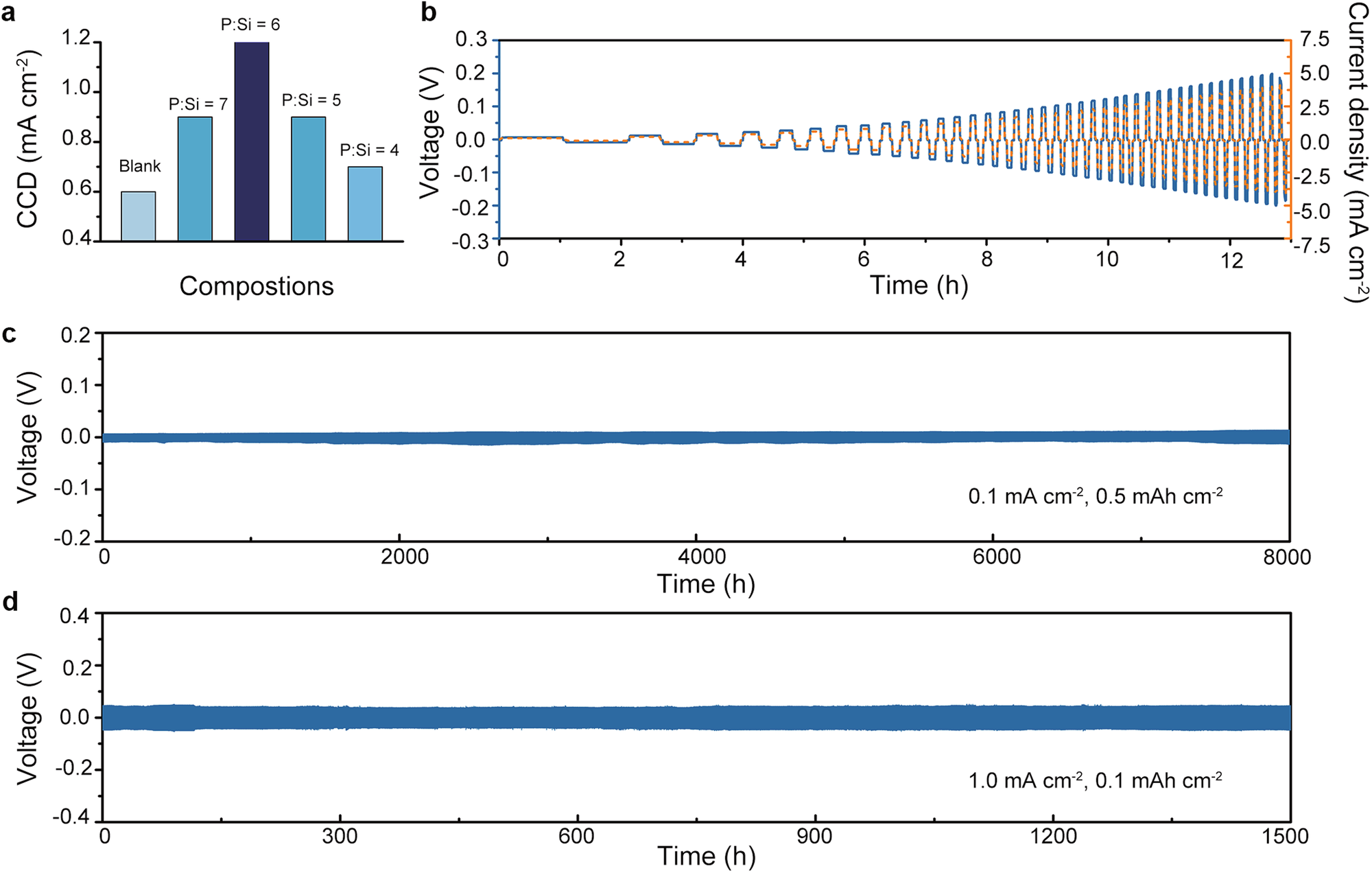

Fig. 4: Li compatibility evaluation for the P:Si = 6 electrolyte.
From: Deciphering the critical role of interstitial volume in glassy sulfide superionic conductors
a The summary of CCD of synthesized electrolytes. b Galvanostatic Li plating/stripping profiles of the Li symmetric cell employing the P:Si = 6 electrolyte at step-increased current densities. The capacity is fixed to be 0.1 mAh cm−2. c Galvanostatic Li plating/stripping profiles of the Li symmetric cell employing the P:Si = 6 electrolyte at a current density of 0.1 mA cm−2 and a cut-off capacity of 0.5 mAh cm−2. d Galvanostatic Li plating/stripping profiles of the Li symmetric cell employing the P:Si = 6 electrolyte at a current density of 1.0 mA cm−2 and a cut-off capacity of 0.1 mAh cm−2.
