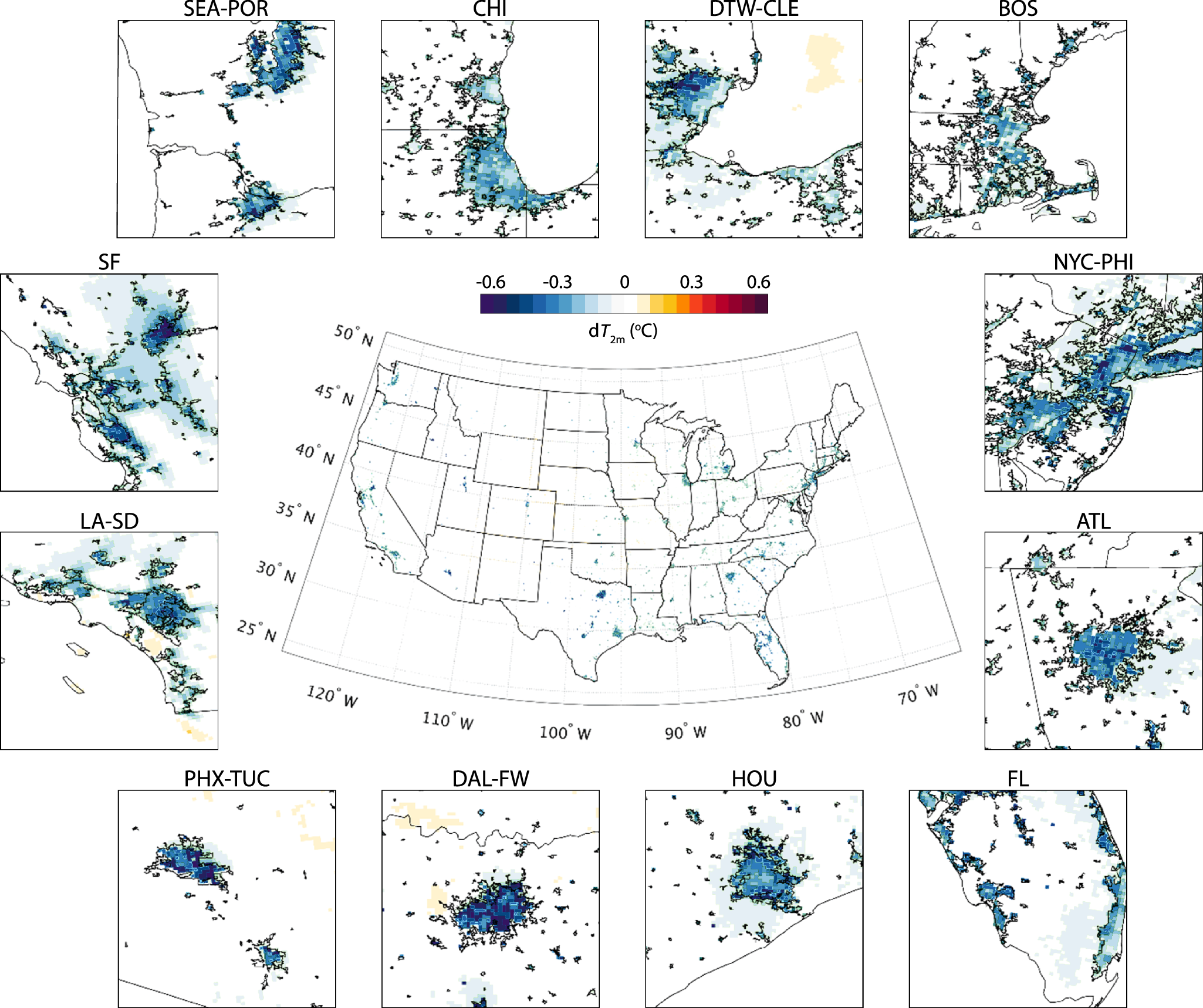

Fig. 1: Changes of simulated daily mean 2-meter temperature (dT2m) after applying urban irrigation.
From: The potential of urban irrigation for counteracting carbon-climate feedback
Subplots around the CONUS map show the details over 12 metropolitan regions. SEA-POR: Seattle, WA and Portland, OR; CHI: Chicago, IL; DT-CLE: Detroit, MI and Cleveland, OH; BOS: Boston, MA; NYC-PHI: New York, NY and Philadelphia, PA; ATL: Atlanta, GA; FL: Cities around the coast of Florida; HOU: Houston, TX; DAL-FW: Dallas and Fort Worth, TX; PHX-TUC, Phoenix and Tucson, AZ; LA-SD: Los Angeles and San Diego, CA; SF: San Francisco, CA.
