Fig. 1: Gene expression and chromatin accessibility associated with the four subgenomes (A, B, C, D) in strawberry. | Nature Communications

Fig. 1: Gene expression and chromatin accessibility associated with the four subgenomes (A, B, C, D) in strawberry.

From: Dynamics of accessible chromatin regions and subgenome dominance in octoploid strawberry

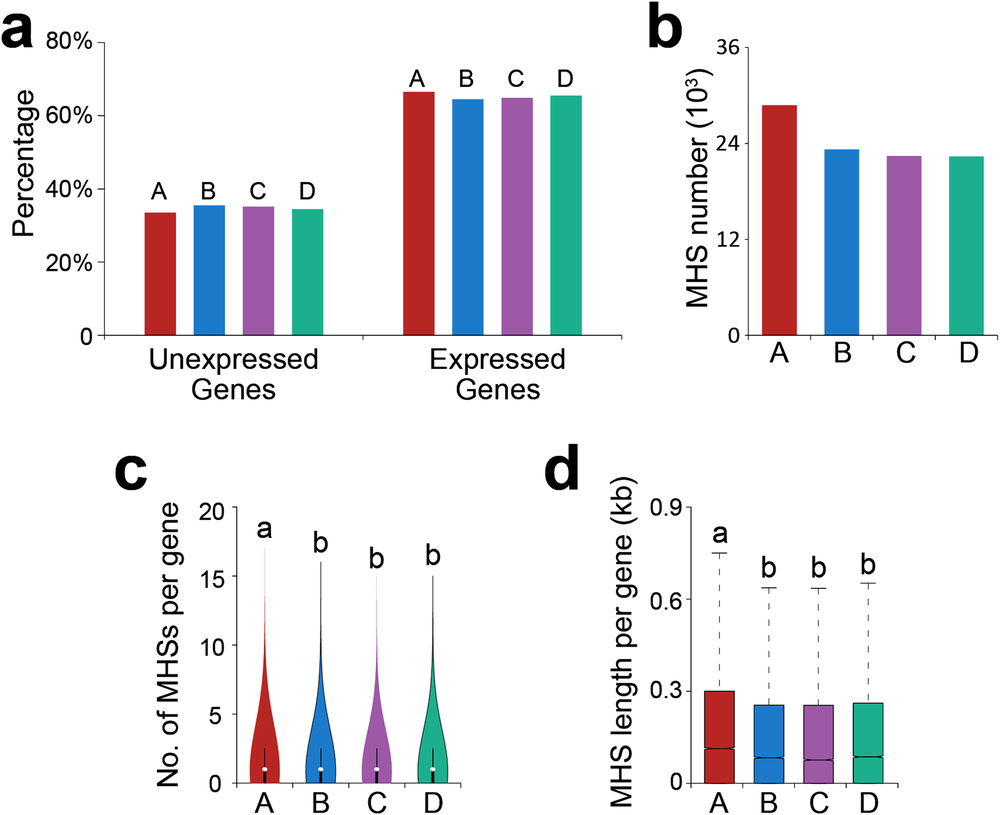

Fig. 1

a Percentage of expressed and non-expressed genes in the four subgenomes. Subgenome A has a lower percentage of non-expressed genes and a higher percentage of expressed genes (A vs. B: p = 2.4eāˆ’6; A vs. C: p = 1.2eāˆ’4; A vs. D: p = 1.8e–2, two-sided chi-square test). b A total number of MHSs in each subgenome. c Average number of MHSs per gene in each subgenome (nA = 27,398, nB = 25,461, nC = 24,505, nD = 23,911). d Average MHS length per gene in each subgenome (nA = 27,398, nB = 25,461, nC = 24,505, nD = 23,911). The lower and upper boundaries of each box indicate 25th and 75th percentile, the center line indicates the median, and the whiskers extend to 1.5Ɨ IQR. In (c, d), the total number of MHSs and MHS length were normalized in the four subgenomes by dividing to the total number of genes from each subgenome. Means that do not share a letter are significantly different (p < 0.01, one-way ANOVA with Games-Howell post-hoc test). Source data are provided as a Source Data file.
