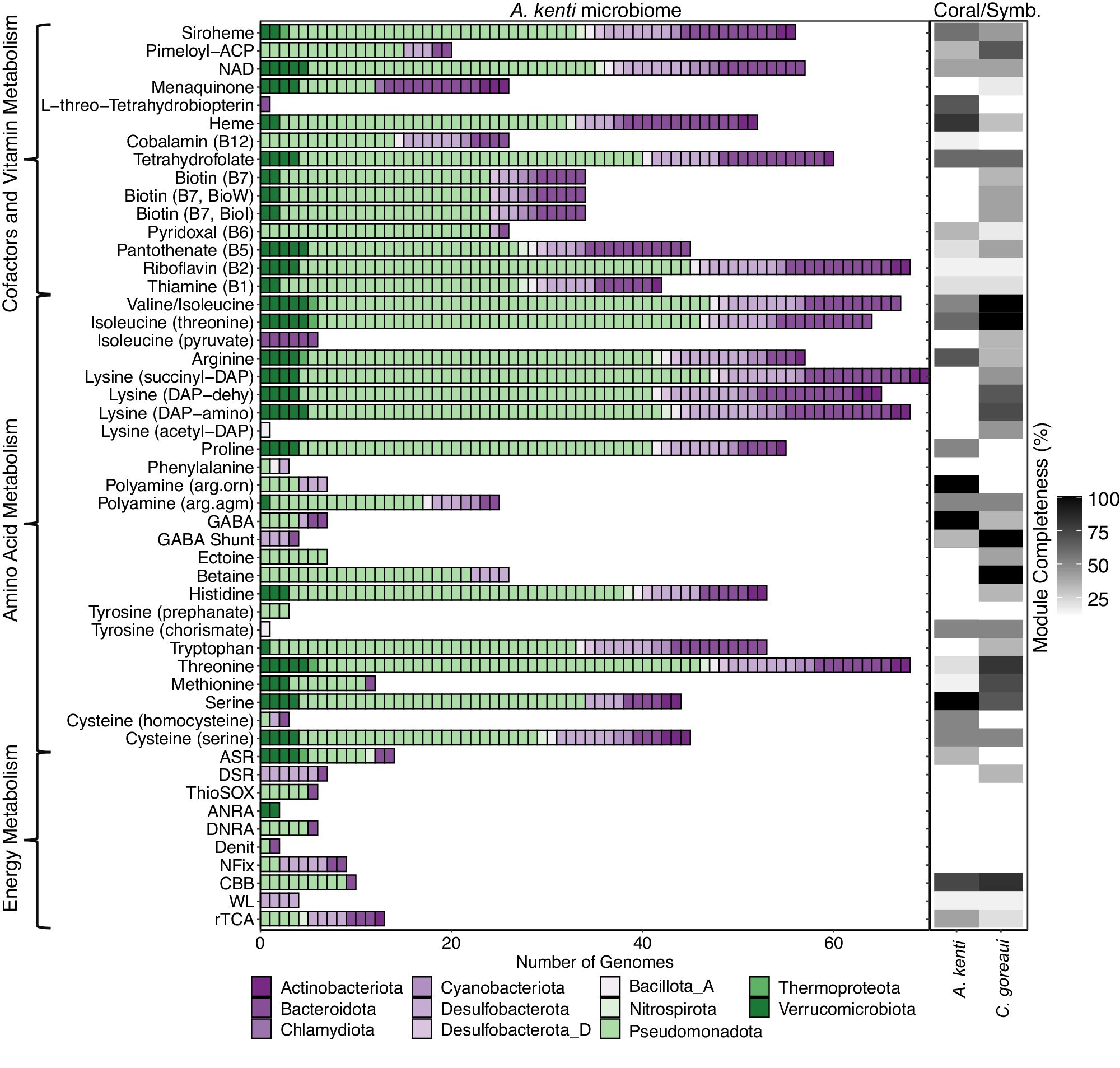

Fig. 5: Metabolic overview of key KEGG modules (>75% complete for MAGs) central to energy metabolism, amino acid, and vitamin biosynthesis within the A. kenti holobiont.
From: A genome-centric view of the role of the Acropora kenti microbiome in coral health and resilience
A. kenti and C. goreaui annotations were performed on publicly available protein predictions (see Methods) and are represented as KEGG module completeness (%; right side of figure). MAGs are coloured by their phylum-level taxonomic assignments. Source data are provided as a Source Data file. rTCA reverse tricarboxylic acid cycle, WL Wood-Ljungdahl pathway, CBB Calvin-Benson-Bassham cycle, NFix dinitrogen fixation, Denit denitrification, DNRA dissimilatory nitrate reduction to ammonia, ANRA assimilatory nitrate reduction to ammonia, ThioSOX thiosulfate oxidation, DSR dissimilatory sulfate reduction, ASR assimilatory sulfate reduction.
