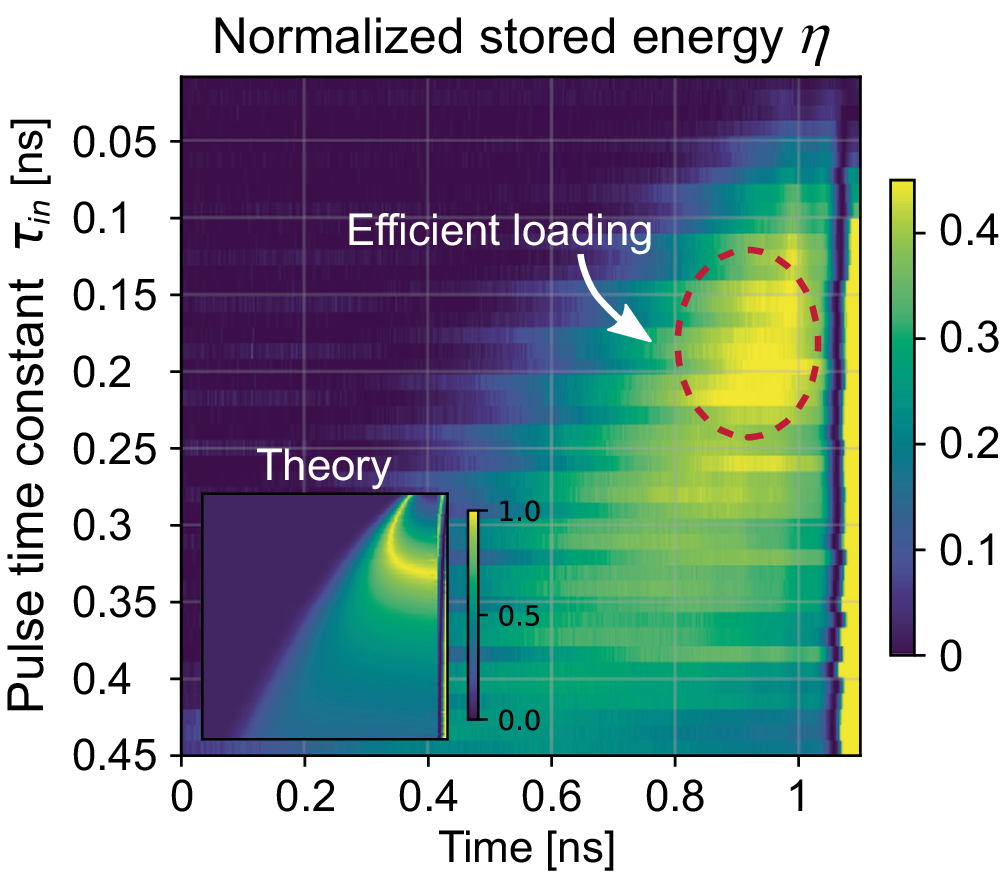

Fig. 4: Normalized stored energy \(\eta\) in the resonator.
From: Efficient excitation and control of integrated photonic circuits with virtual critical coupling
Effective cavity loading is enhanced in the marked area due to virtual critical coupling. Inset: theoretical calculation for the same parameter range.
