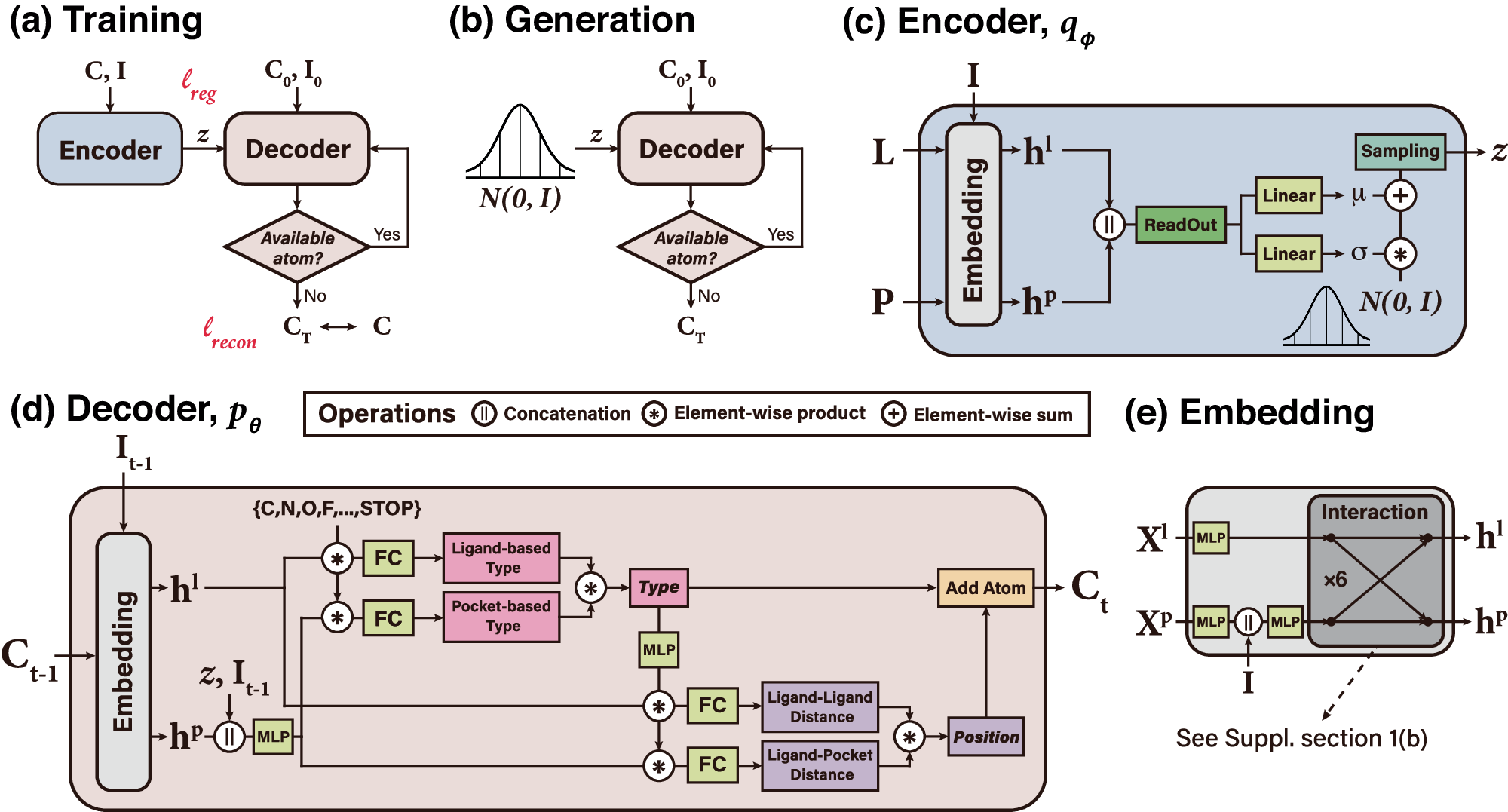

Fig. 5: Illustration of the model architecture of DeepICL.
From: 3D molecular generative framework for interaction-guided drug design
