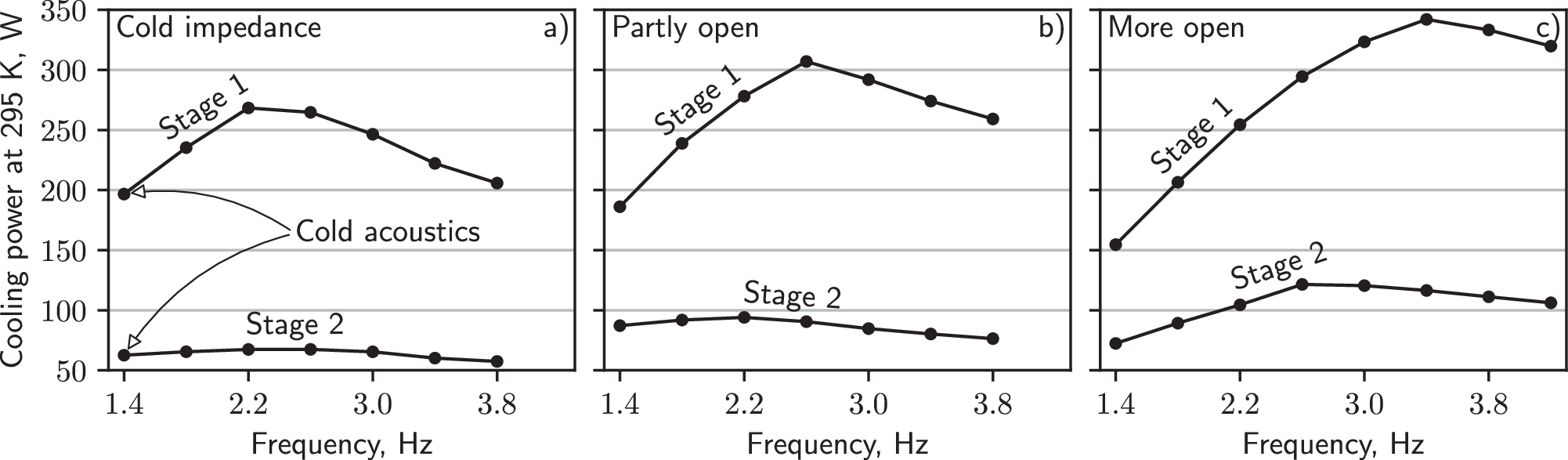

Fig. 4: Cooling power at ambient temperature for a variety of acoustic settings.
From: Dynamic acoustic optimization of pulse tube refrigerators for rapid cooldown
Subplot (a) gives cooling as a function of f when the main needle valves were optimized for low-temperature performance. Subplots (b, c) give cooling when the first and second stage needle valves were progressively opened, reducing the acoustic impedance.
