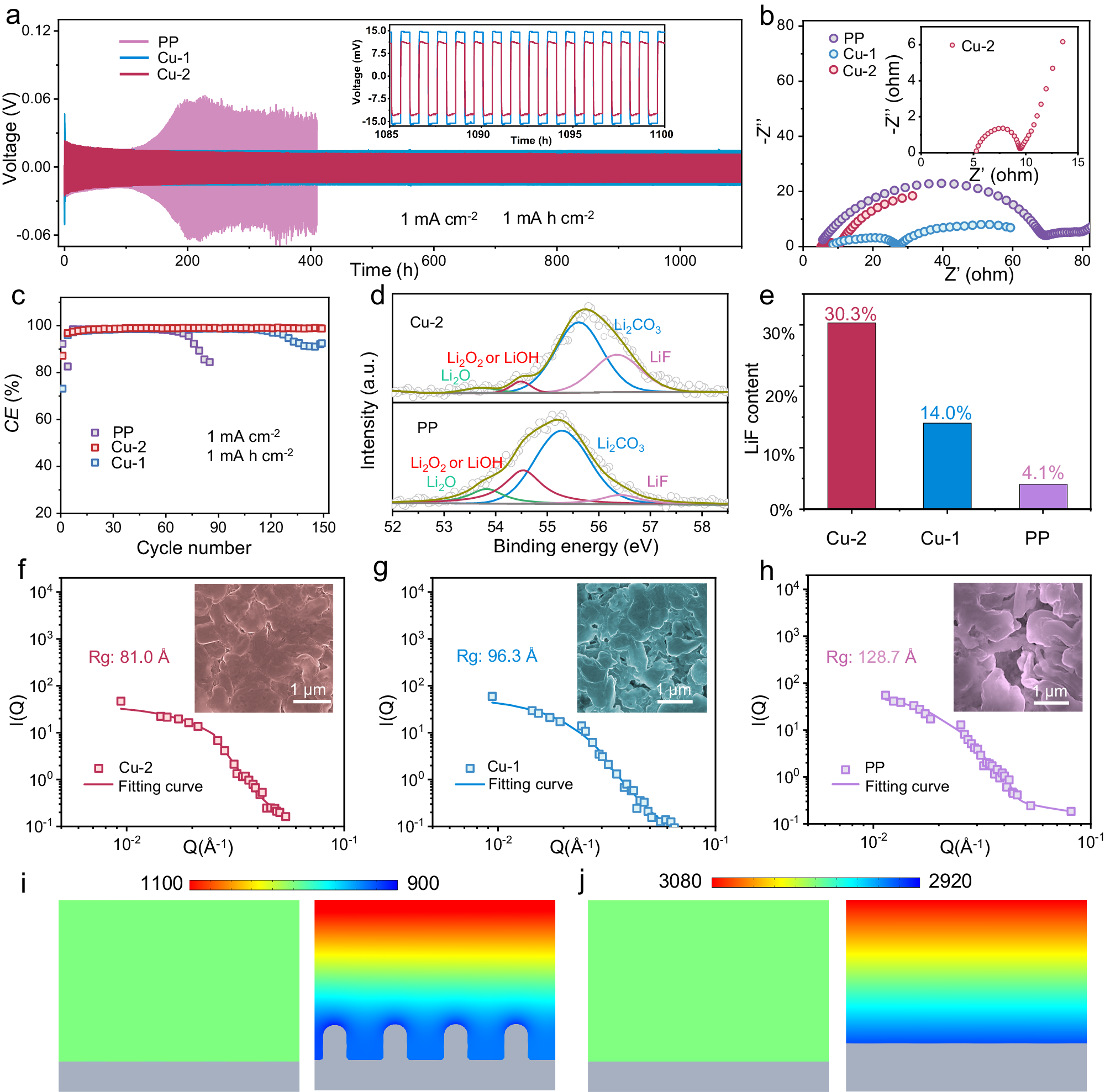

Fig. 6: Effect of electrocatalysts on lithium anodes.
From: Chlorine bridge bond-enabled binuclear copper complex for electrocatalyzing lithium–sulfur reactions
a Cycling performance of Li//Li symmetric cell with the Cu-1,Cu-2 coated separators and pristine separator at 1.0 mA cm−2. b EIS curves for Li//Li symmetric battery after cycling. c CE of Cu//Li cells with different separators at 1 mA cm−2. d Li 1s XPS fitting data with etching for cycled sample. e LiF content statistics from Li 1s XPS fitting data. f–h SANS matrix of scattering intensity signals and fitting curves from Li anodes in Li//Li symmetric cells with Cu-2, Cu-1, and PP separators after cycling. COMSOL results of Li plating with PP (i) and Cu-2 (j) coated separators.
