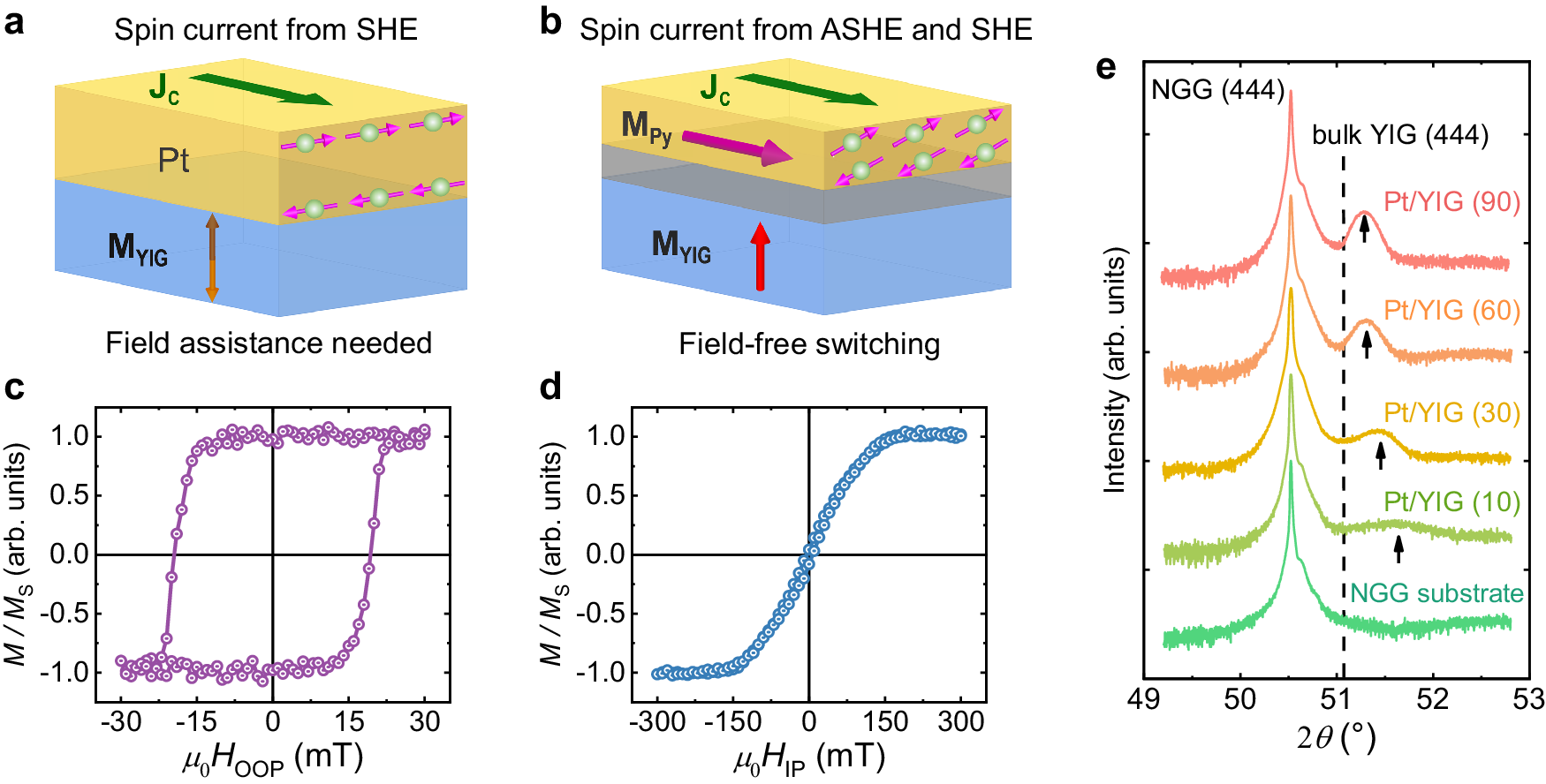

Fig. 1: Schematic illustration of SOT-switching and the magnetic/structural properties of the YIG films.

From: Highly efficient field-free switching of perpendicular yttrium iron garnet with collinear spin current

Fig. 1

a Illustration of a conventional SOT-switching caused by spin Hall effect in PMA-YIG/Pt. In this configuration, the YIG film has the same stability for magnetization up and down with the same injecting current. Thus, an additional in-plane field is required to achieve the deterministic switching. b Illustration of a field-free SOT-switching by the combination of both anomalous spin Hall effect and spin Hall effect in PMA-YIG/Ag/Py. c, d are the out-of-plane (OOP) and in-plane (IP) hysteresis loops of 10-nm PMA-YIG measured with VSM, respectively. e X-ray diffraction data of a bare NGG substrate and YIG films with different thicknesses grown on NGG. The dashed line represents the bulk YIG (444) peak, and the unit of thickness is nm. The thickness of the Pt buffer layer is 0.5 nm.
