Fig. 5: Topology transformation pathway from Cs to C3h in the absence or presence of Se atoms.
From: Topology selectivity of a conformationally flexible precursor through selenium doping

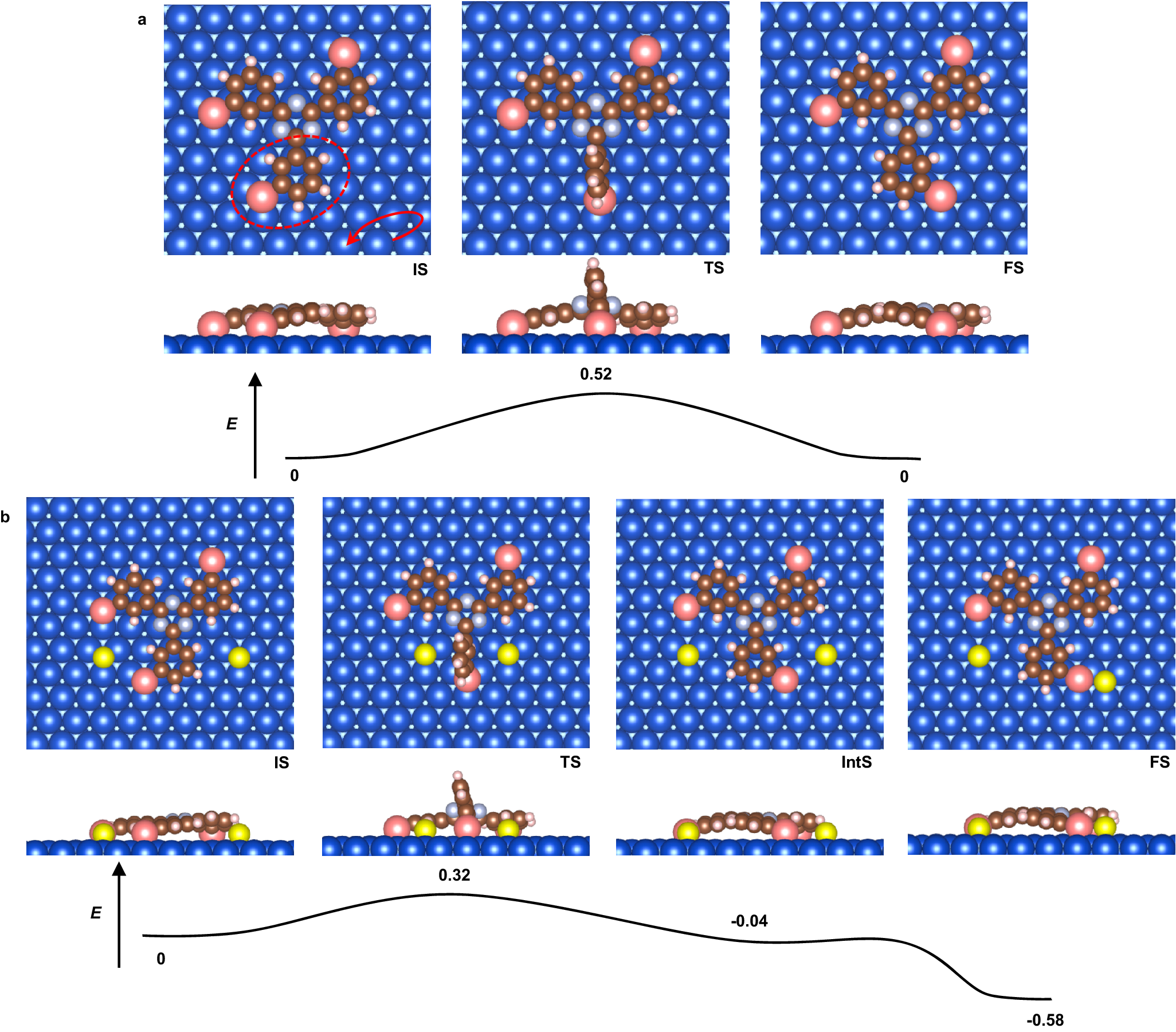

Energy diagrams for the transformation from Cs to C3h a without and b with Se doping. The structural models are given for the initial, transition, intermediate, and final states, respectively. The energy scale is not linear. Energies are given in units of eV. Brown, white, gray, yellow, blue, and pink balls represent C, H, N, Se, Cu substrate, and Cu adatoms, respectively. Source data are provided as a Source data file.
