Fig. 5: Motif analysis of accessible DNA peaks predicts cell type specific TFs in the developing human retina.

From: Single-cell analyses reveal transient retinal progenitor cells in the ciliary margin of developing human retina

Fig. 5: Motif analysis of accessible DNA peaks predicts cell type specific TFs in the developing human retina.

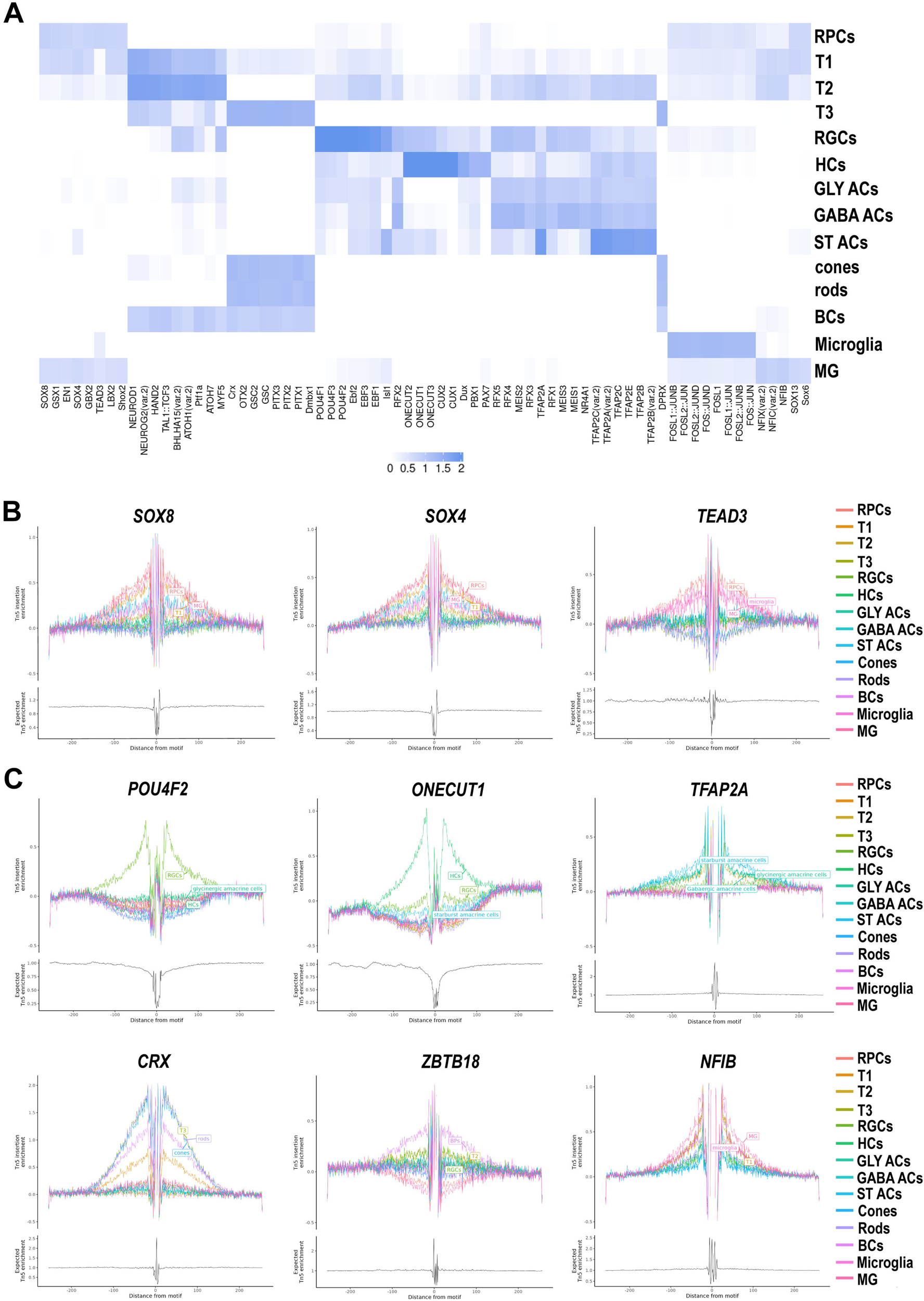

A Heatmap of transcription factor binding motifs enriched in each cell type. More significant enrichment is indicated by the darker colours. B Footprinting analysis of selected TFs predicted to show a significant enrichment in RPCs. C Footprinting analysis of selected TFs predicted to show a significant enrichment in transient neurogenic progenitors and retinal neurons. Additional abbreviations to those mentioned in the main text: Gly ACs glycinergic amacrine cells, GABA ACs gabaergic amacrine cells, ST ACs starburst amacrine cells, HCs horizontal cells, MG Muller glia cells.
