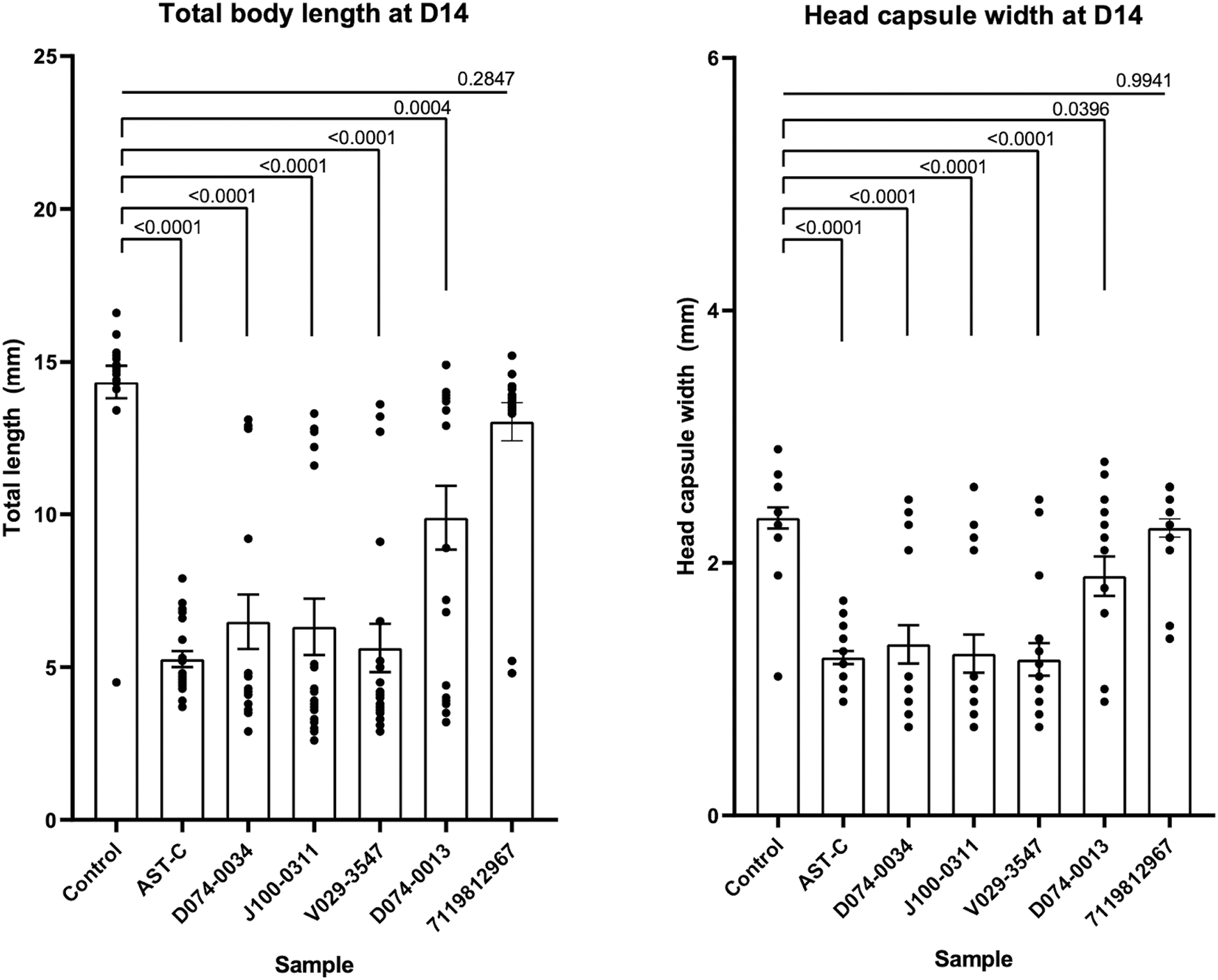

Fig. 7: Effects of the four identified hit compounds, the native peptide AST-C, untreated application medium (PBS with 0.1% BSA), and a non-AST-C targeting control ligand (7119812967) on T. pityocampa larval length and head capsule width.

From: Discovering allatostatin type-C receptor specific agonists

Fig. 7

Left: Changes in larva body length are demonstrated following the 14th day after being treated with pesticide candidates, AST-C, and control ligand 7119812967. P values are given above the bars (n = 20). Right: Effects of treatment with hit compounds, native peptide, and 7119812967 on head capsule width. P values are given above the bars (n = 20). Each n corresponds to an individual larva. Numbers above bars denote P values as determined by one-way ANOVA. Tukey’s test was used for multiple comparisons. Error bars are presented in ±SEM. Source data are provided as a Source Data file.
