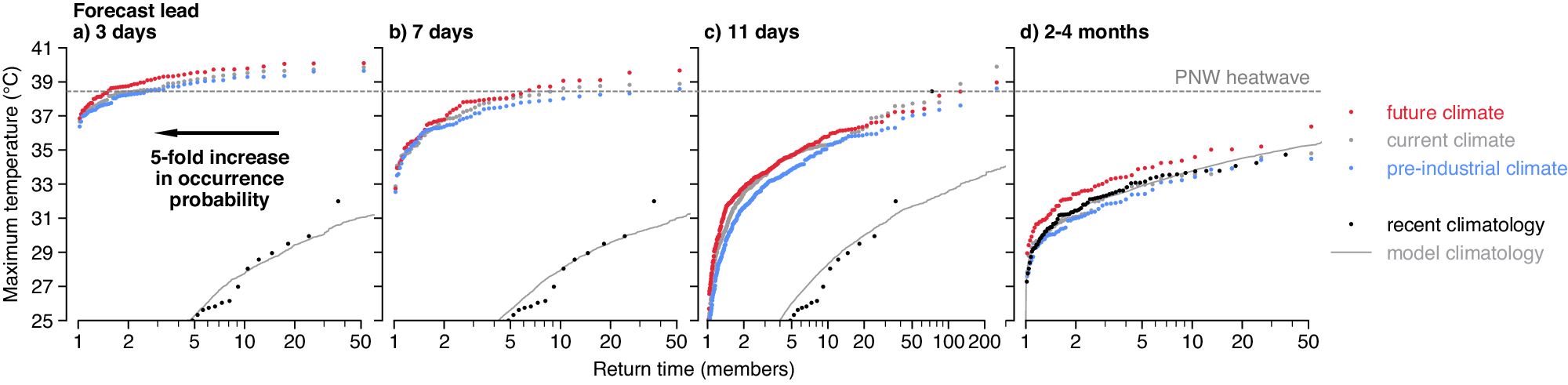

Fig. 3: Return-time diagram of the Pacific Northwest (PNW) heatwave in the operational and counterfactual forecast ensembles.
